Toshiba Satellite L600 (Discrete) schematic, Quanta TE2D

The motherboard schematic for Toshiba Satellite L600 (Discrete) laptop/notebook, Quanta TE2D.
CPU: Arrandale (UMA+VGA) + VGA Madison/Park
Chipset: Ibex Peak-M PCH
OEM: Quanta Computer Inc.
Project: TE2
Rev: 2A
Total Pages: 43
File size: 1.49MB
Sale Price: 11.5$

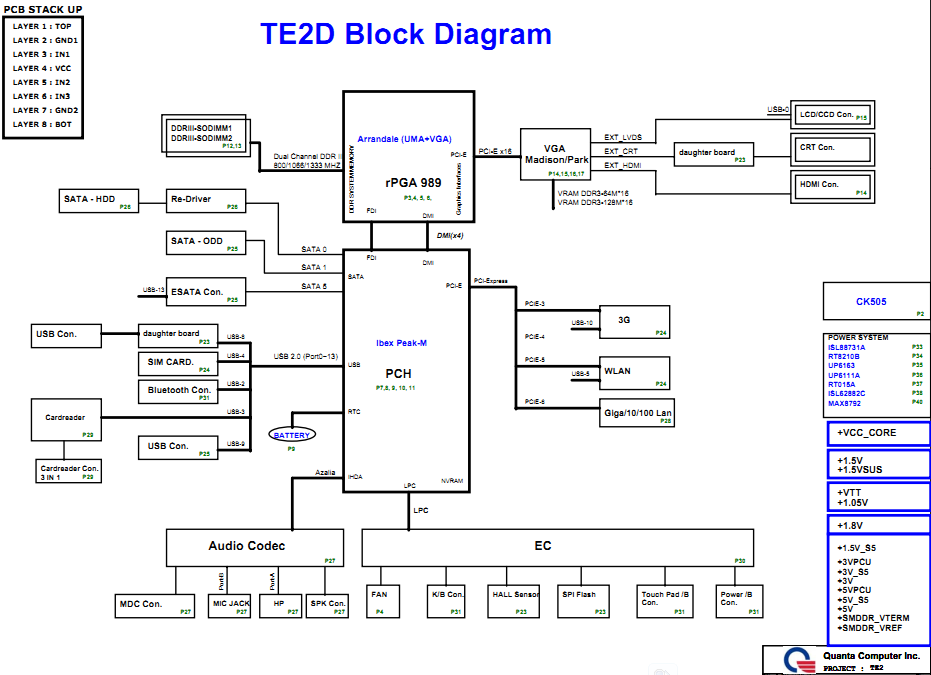

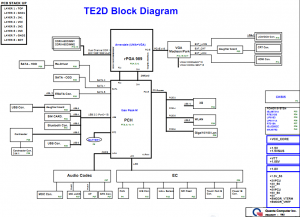

Toshiba Satellite L600 (Discrete) Block Diagram:
