The motherboard schematic for Toshiba Satellite L750, Toshiba Satellite L755 laptop/notebook, Quanta BLG Mainboard, DA0BLGMB6D0.
CPU: Intel Arrandale (UMA+VGA)
Chipset: Intel Ibex Peak-M
OEM:Quanta Computer Inc.
PROJECT: BLG
Rev: B2A
Format: PDF
Total Pages: 47
File size: 1.81MB
Sale Price: 10.5$

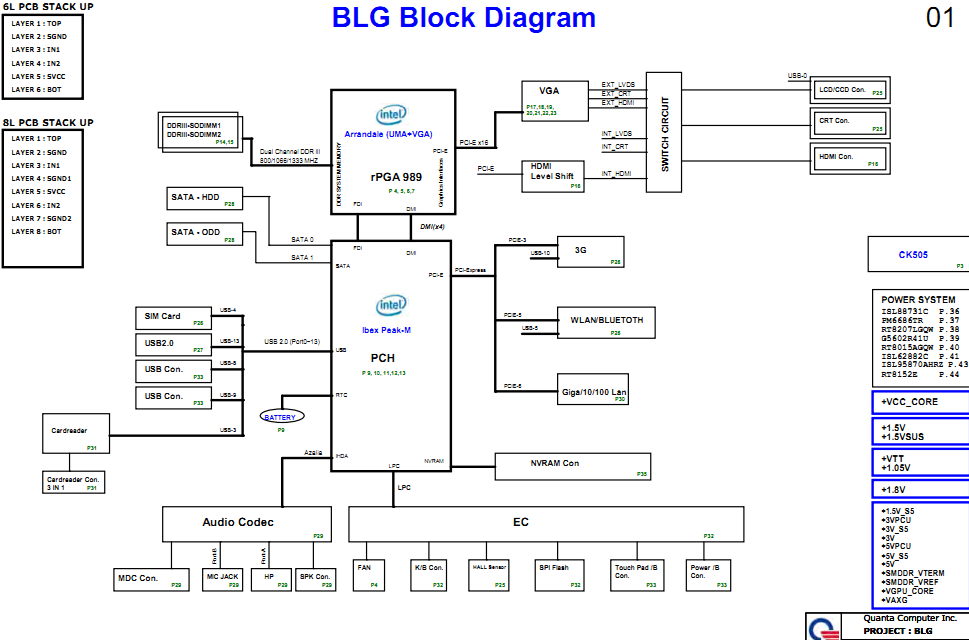

Toshiba Satellite L750 L755 Block Diagram:
Toshiba Satellite L750 L755 Block Diagram
