Toshiba Satellite L630/L635/L730 schematic, Quanta BU5D

The motherboard schematic for Toshiba Satellite L630, Toshiba Satellite L635, Toshiba Satellite L730 laptop/notebook, Quanta BU5D Mainboard, DABU5DMB8E0, 31BU5MB0I20.
CPU: Arrandale (VGA)
VGA Madison/Park
Chipset: Ibex Peak-M PCH
OEM: Quanta Computer Inc.
Document Number: BU5D
Rev: 1A
Format: PDF
Total Pages: 41
File size: 1.43MB
Sale Price: 10.5$

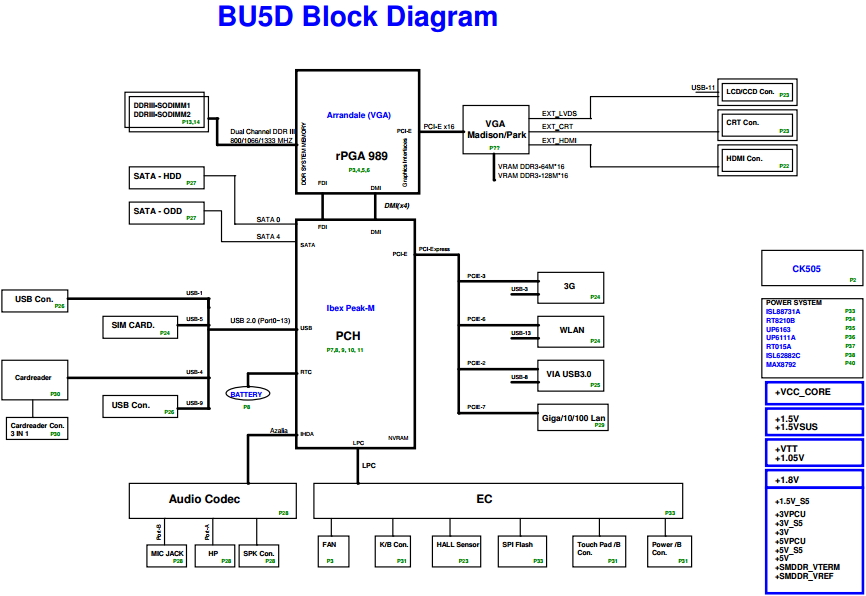

Toshiba Satellite L630/L635/L730 Block Diagram:
