Toshiba Satellite U845 schematic,Quanta BY1

TOSHIBA Schematics

The motherboard schematic for Toshiba Satellite U845 laptop/notebook, Quanta BY1 Mainboard, DA0BY1MB8E0.
CPU: Sandy Bridge 17W  + DDRIII
Chipset: Intel CougarPoint PCH
OEM: Quanta Computer Inc.
Project: BY1
Rev: 1A
Format: PDF
Total Pages: 40
File size: 1.01MB
Sale Price: 11.5$

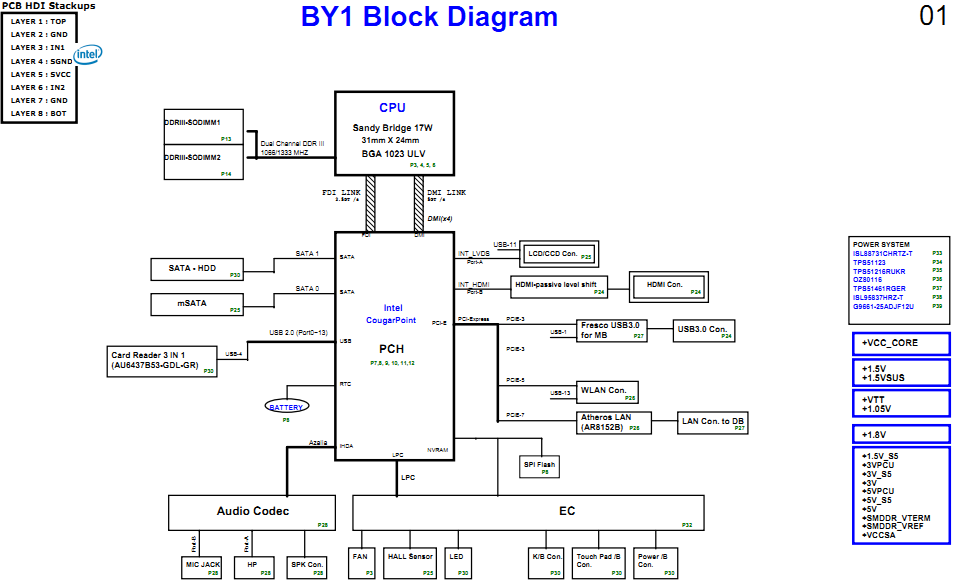

Toshiba Satellite U845 Block Diagram:
Toshiba Satellite U845 Block Diagram

Toshiba Satellite U845 Block Diagram
