The motherboard schematic for Toshiba Satellite U845 Ultrabook Quanta BY2 Mainboard.
CPU: Ivy Bridge 17W + DDRIII
Chipset: Intel Panther Point PCH
OEM: Quanta Computer Inc.
Project: BY2
Rev: 3A
Format: PDF
Total Pages: 40
File size: 987KB
Sale Price: 11.5$

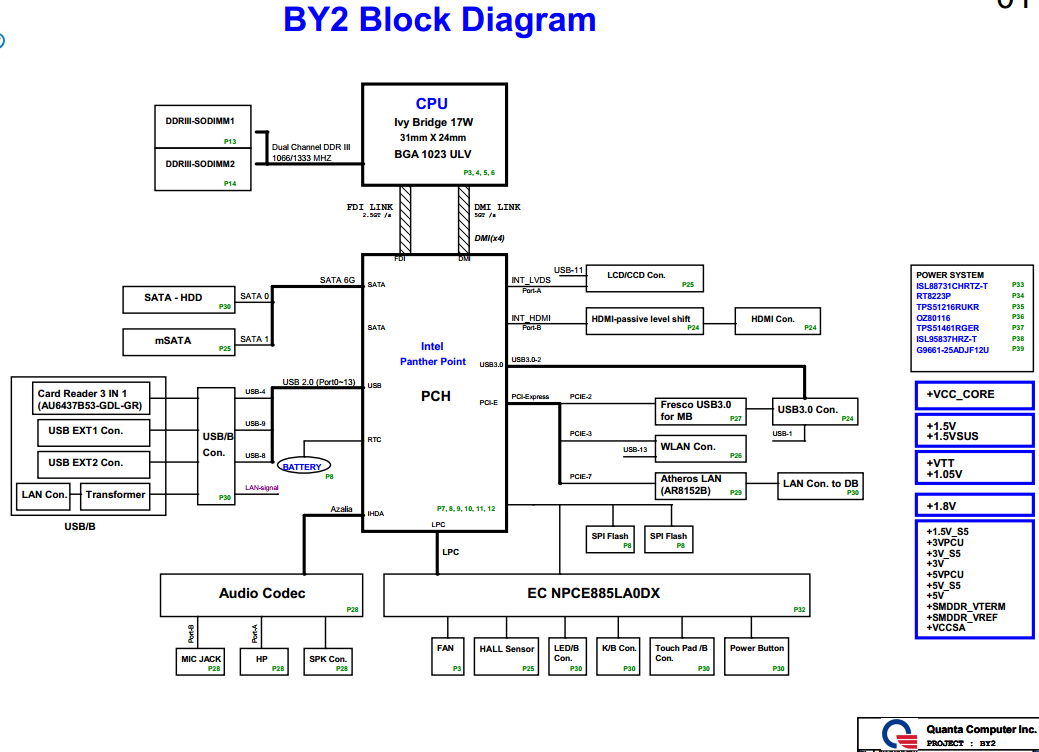

Toshiba Satellite U845 Block Diagram:
