Lenovo ThinkPad E40 Intel Discrete Schematic & Boardview, GC5 DAGC5MB8F0

The motherboard schematic diagram & Boardview (.BRD) for Lenovo ThinkPad E40 Intel Discrete laptop/notebook, LD-Note Intel Calpella Platform with Discrete GFX, GC5 DAGC5MB8F0 motherboard.
CPU: Intel Arrandale
Graphics: AMD M92-S2 X
Chipset: PCH Ibex Peak-M
OEM: Quanta
Format: PDF & BRD
Searchable PDF file, No watermark of website
Language: English
Total Pages: 54
Sale Price: 7.5$ (include Boardview)

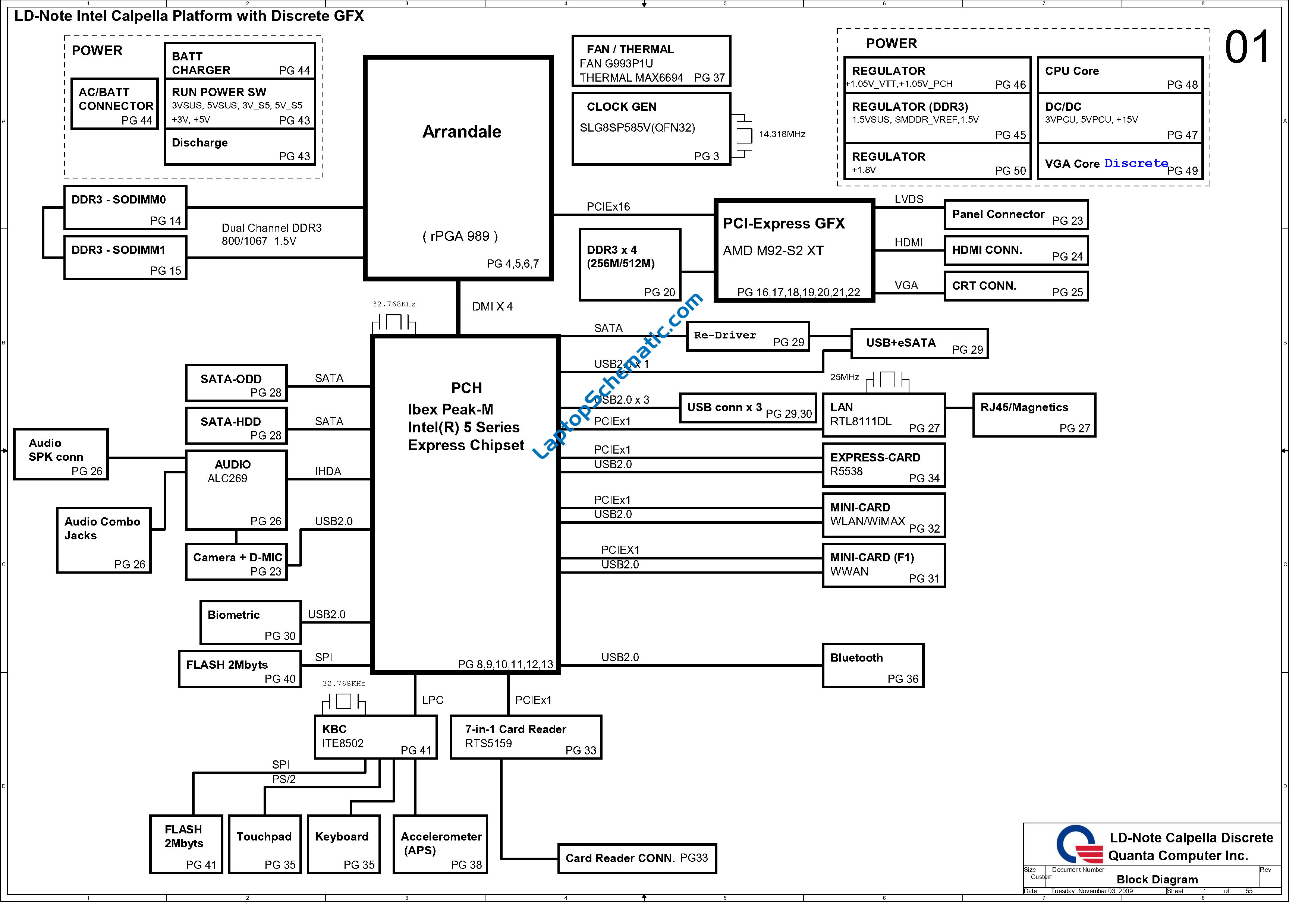

Lenovo ThinkPad E40 Intel Discrete GC5 Schematic Block Diagram:

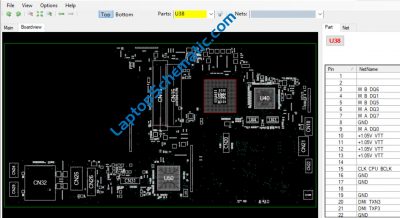

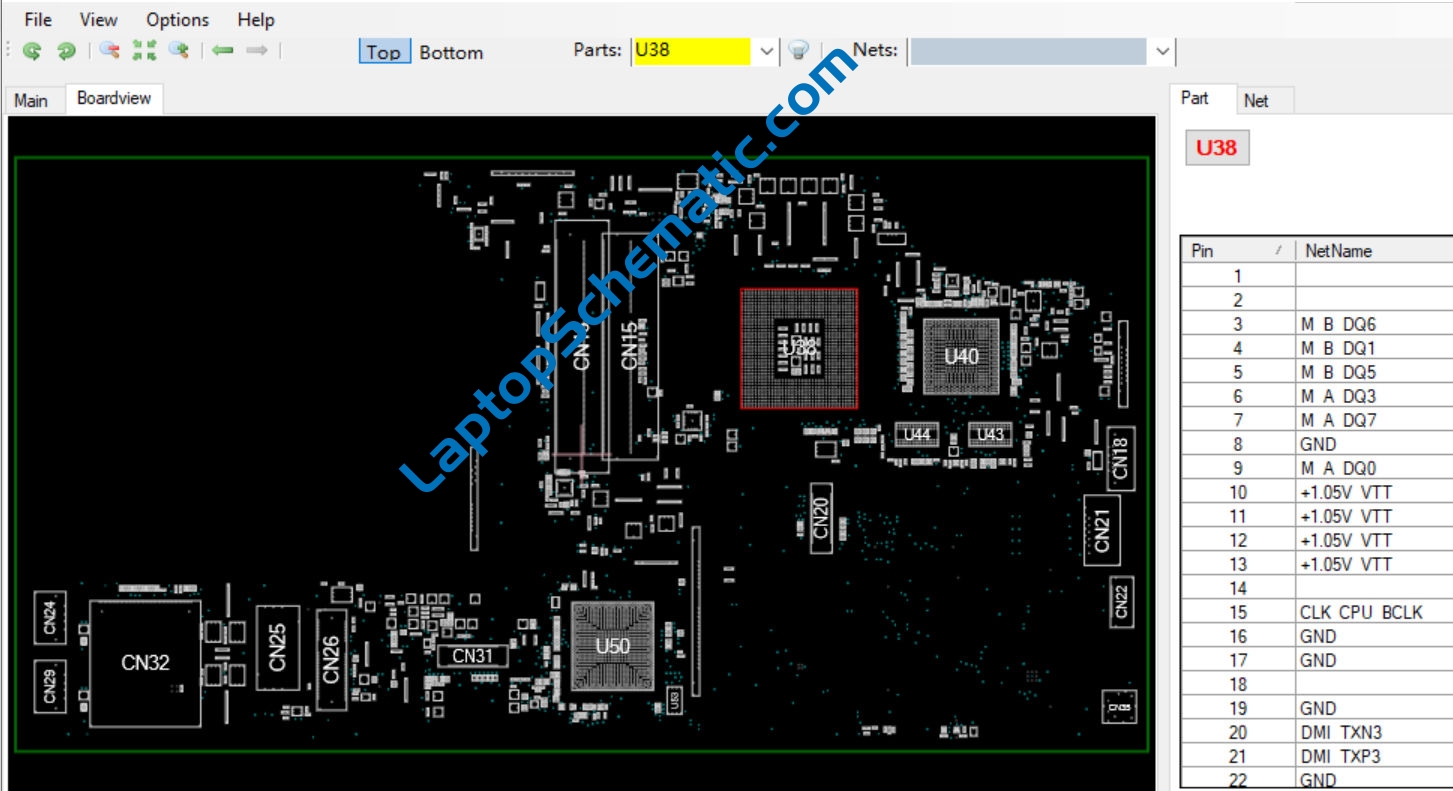

Lenovo ThinkPad E40 Intel Discrete GC5 BoardView:
