Lenovo ThinkPad L480 Schematic & Boardview, EL480/EL580 NM-B461

The motherboard schematic diagram & Boardview (.TVW) for Lenovo ThinkPad L480 laptop/notebook, EL480/580 NM-B461 Rev0.1 Schematic, Intel KabyLake/KabyLake-R Processor with DDR4 PCH, AMD R17M-M1-70, EL480/EL580 NM-B461 motherboard.
Document Number: EL480 / EL580 NM-B461
OEM: LCFC
Format: PDF
No watermark of website
Language: English
Total Pages: 99
Sale Price: 16.5$ (include Boardview)

Also included:
— BoardView file and BoardView software
— Power Block Diagram

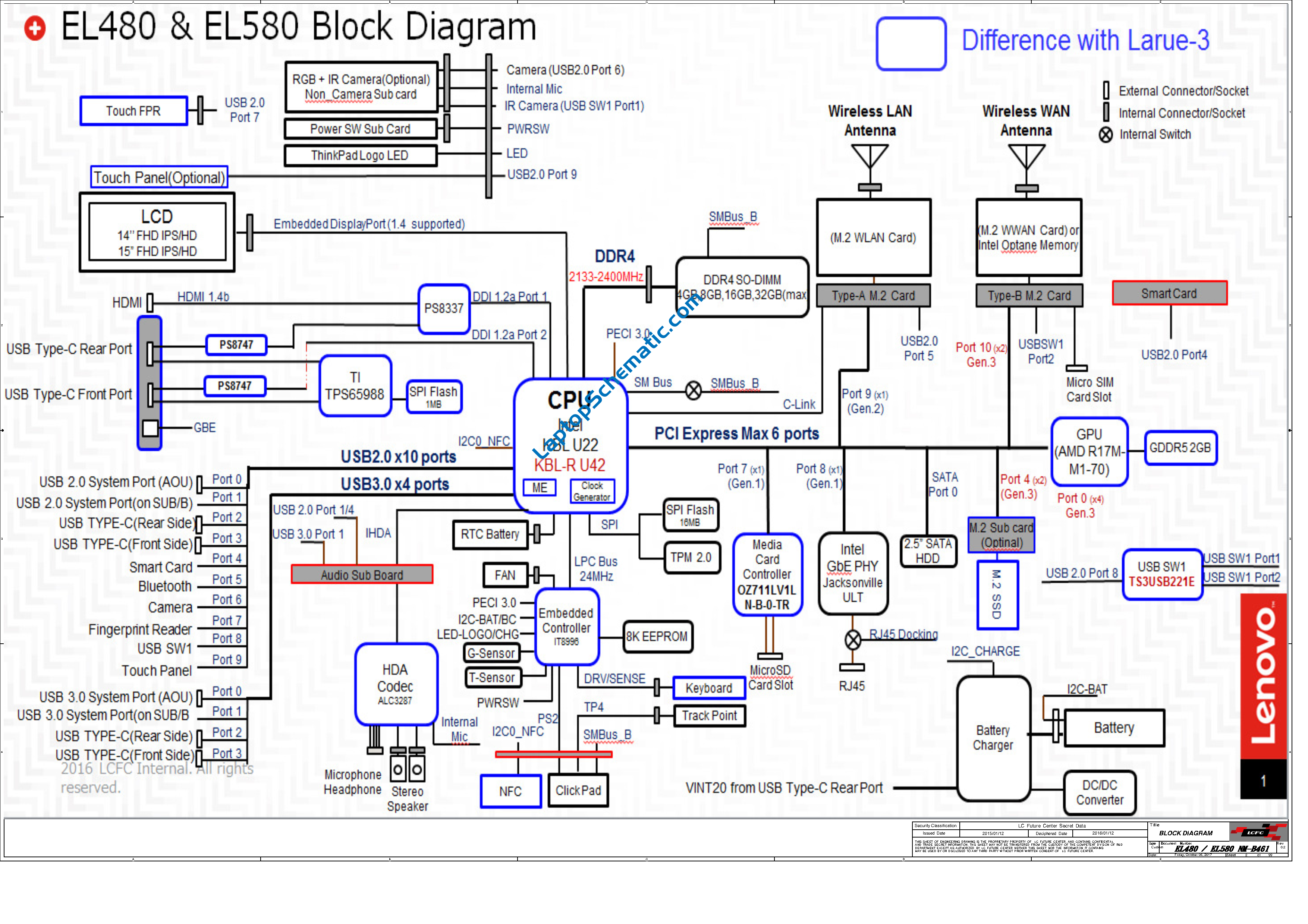

Lenovo ThinkPad L480 EL480/EL580 NM-B461 Schematic Block Diagram:

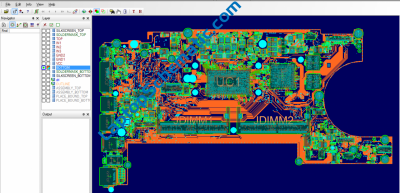

Lenovo ThinkPad L480 EL480/EL580 NM-B461 BoardView:

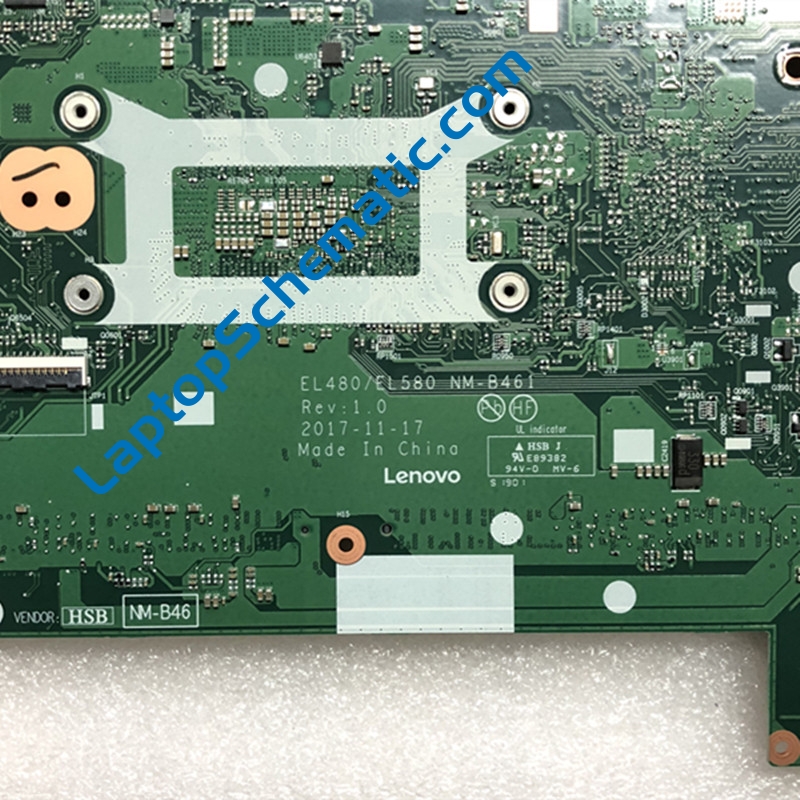

Lenovo ThinkPad L480 EL480/EL580 NM-B461 Motherboard:
