Lenovo Thinkpad E565 Schematic diagram, LCFC BE565 NM-A631

Lenovo Schematics

The motherboard schematic diagram for Lenovo Thinkpad E565 laptop/notebook, BE565 NM-A631 motherboard.
CPU/RAM: AMD CARRIZO + DDR3L
GPU: UMA or DIS (AMD Exo Pro 2G + DDR3)
EC: ITE IT8586E/FX
OEM: LCFC
Document Number: 320AST
Format: PDF (No watermark of website)
Total Sheet: 72
Language: English
Sale Price: 12.5$

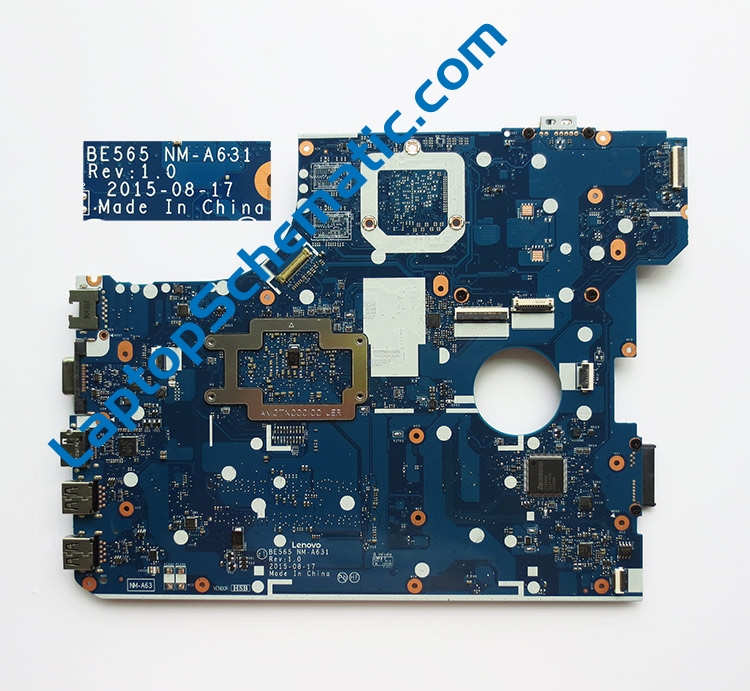

Lenovo Thinkpad E565 LCFC BE565 NM-A631 Motherboard:
Lenovo Thinkpad E565 LCFC BE565 NM-A631 Motherboard
