Lenovo IdeaPad L340-15IWL Schematic & Boardview LCFC FG540 FG740 NM-C092

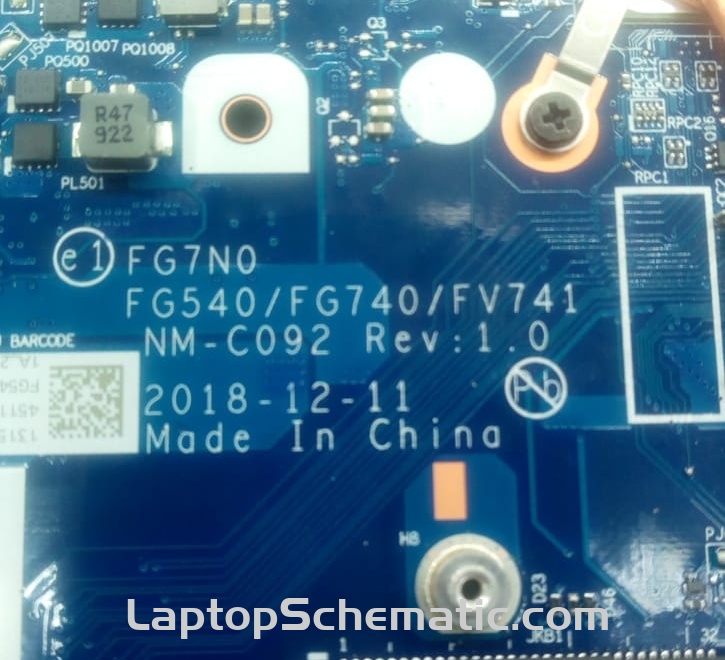

Schematic (*.pdf), Boardview (*.tvw) for Lenovo IdeaPad L340-15IWL laptop, FG7N0 FG540 /FG740/FV741 NM-C092 Motherboard.
CPU/RAM: Intel Whiskey Lake / DDR4
GPU: DIS (NV N16x/N17x + GDDR5)
EC: ITE IT8586E
Format：PDF (Searchable) / Boardview (*.tvw)
Sale Price: 13.5$

Original document, no irrelevant watermark.

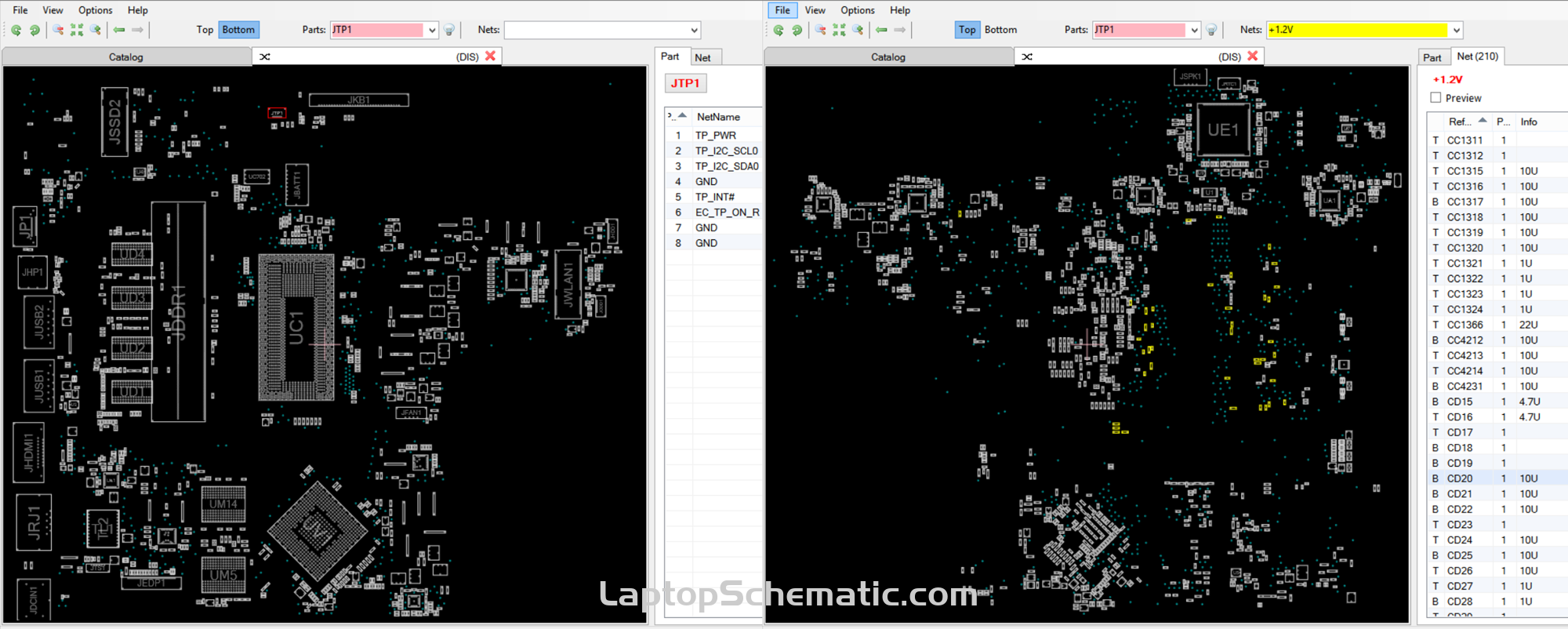

Boardview Software

• Open Boardview(.tvw) file with BoardViewer (Download)
