Lenovo IdeaPad S145-14IGM S145-15IGM Schematic & Boardview NM-C111 FS440 FS541

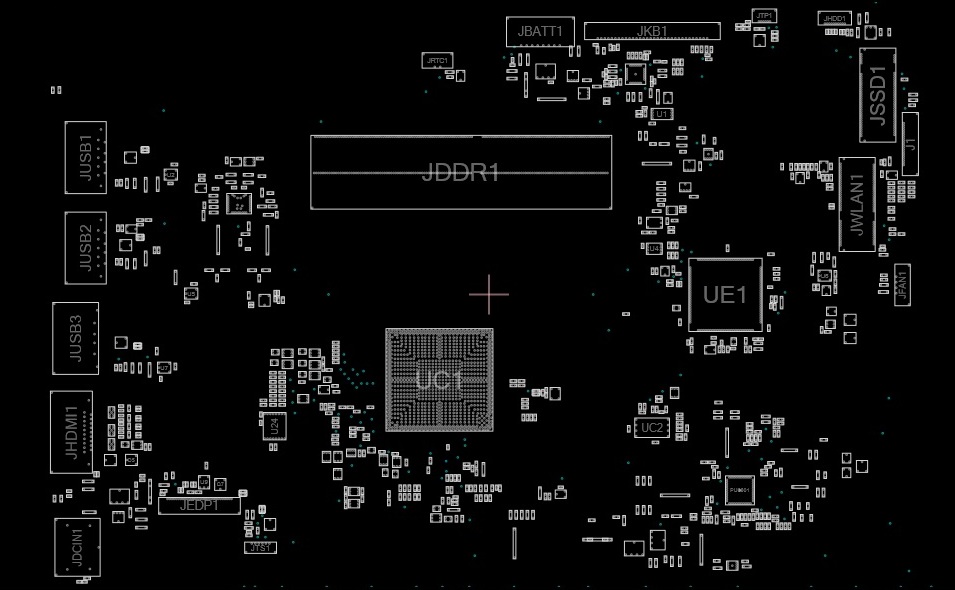

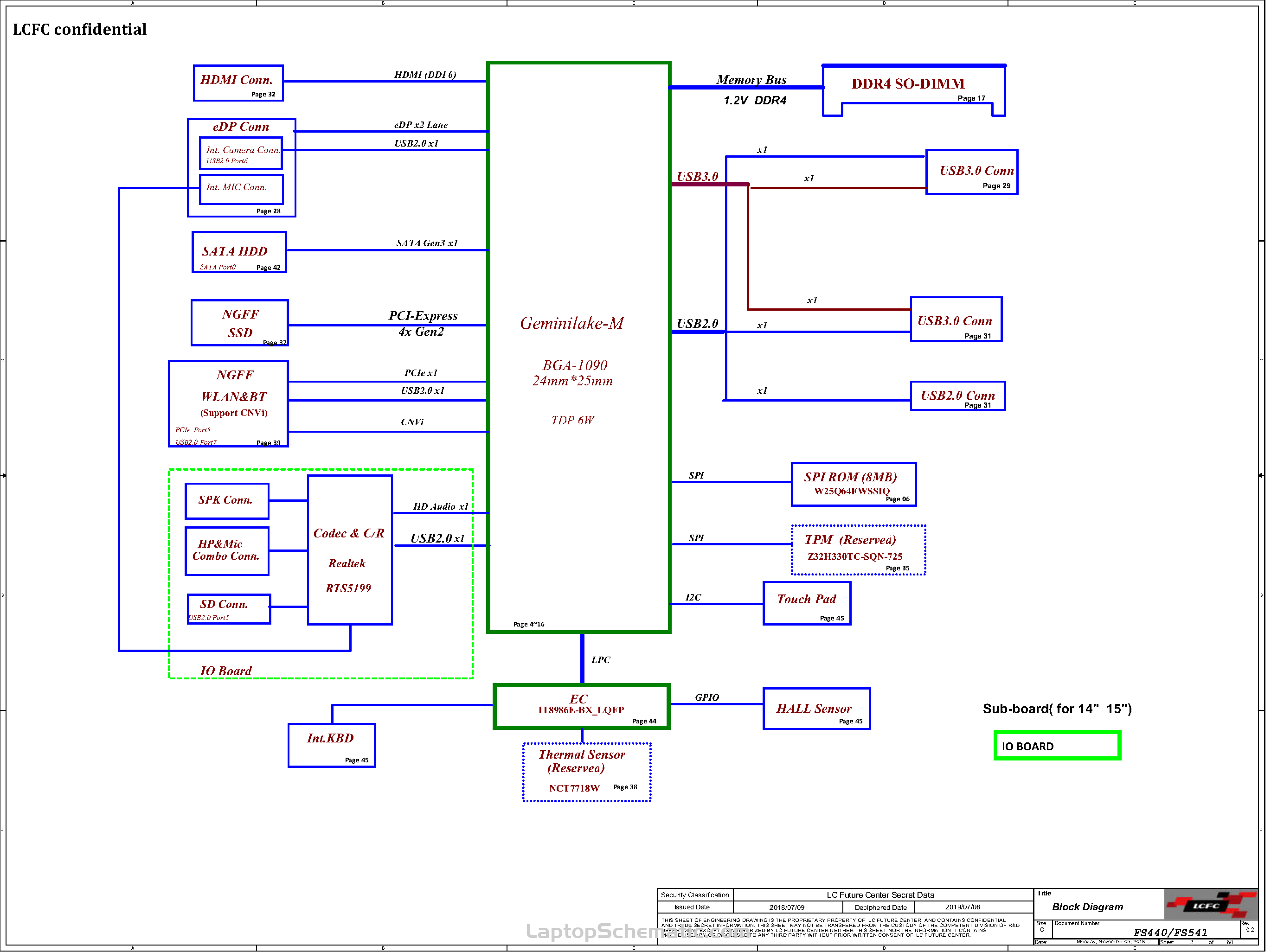

Schematic (*.pdf), Boardview (*.tvw) for Lenovo IdeaPad S145-14IGM, Lenovo IdeaPad S145-14IGM laptop, NM-C111 FS440 FS541 Motherboard. S145-IGM M/B FS440/FS541 Schematics Document, Intel Geminilake M-Processor with DDR4 UMA.

CPU/HUB/RAM: Geminilake-M / DDR4
GPU: UMA
EC: ITE IT8986E-BX
Format：PDF (Searchable) / Boardview (*.tvw)
Sale Price: 13.5$

Boardview Software

• Open Boardview(.tvw) file with BoardViewer (Download)

File list:
Lenovo IdeaPad S145-15IGM LCFC FS440_FS541 NM-C111 Rev 0.2.pdf
NM-C111 Boardview\NSC121 Rev1.0.tvw
NM-C111 Boardview\NM-C111 REV1.0.tvw
NM-C111 Boardview\NM-C111 REV0.2.tvw
