Lenovo Legion Y720-15IKB Schematic & Boardview DY510/DY511 NM-B163

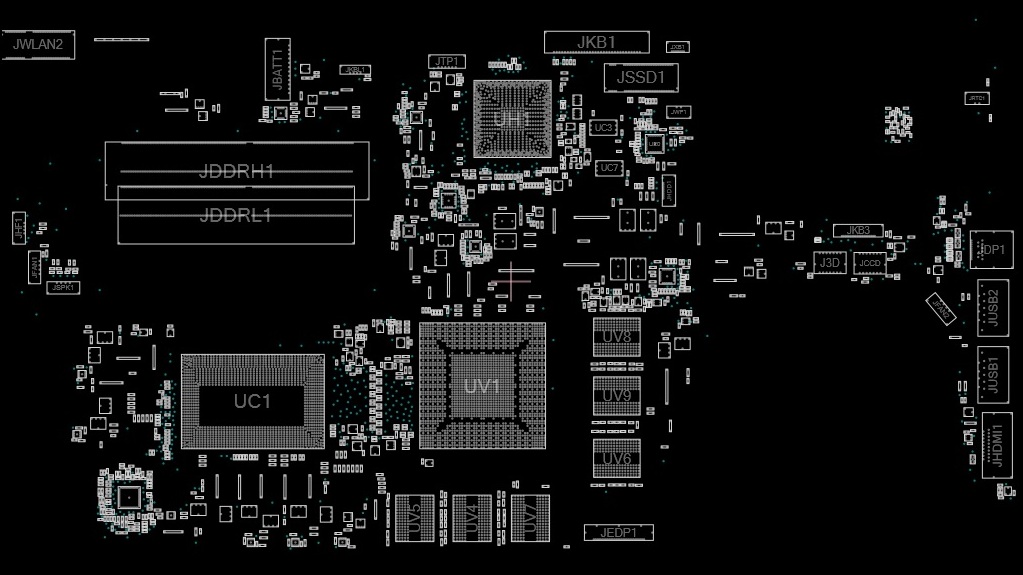

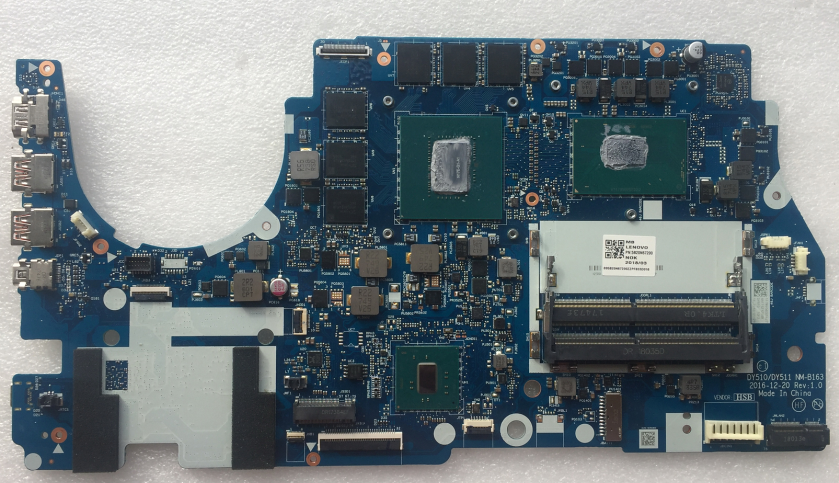

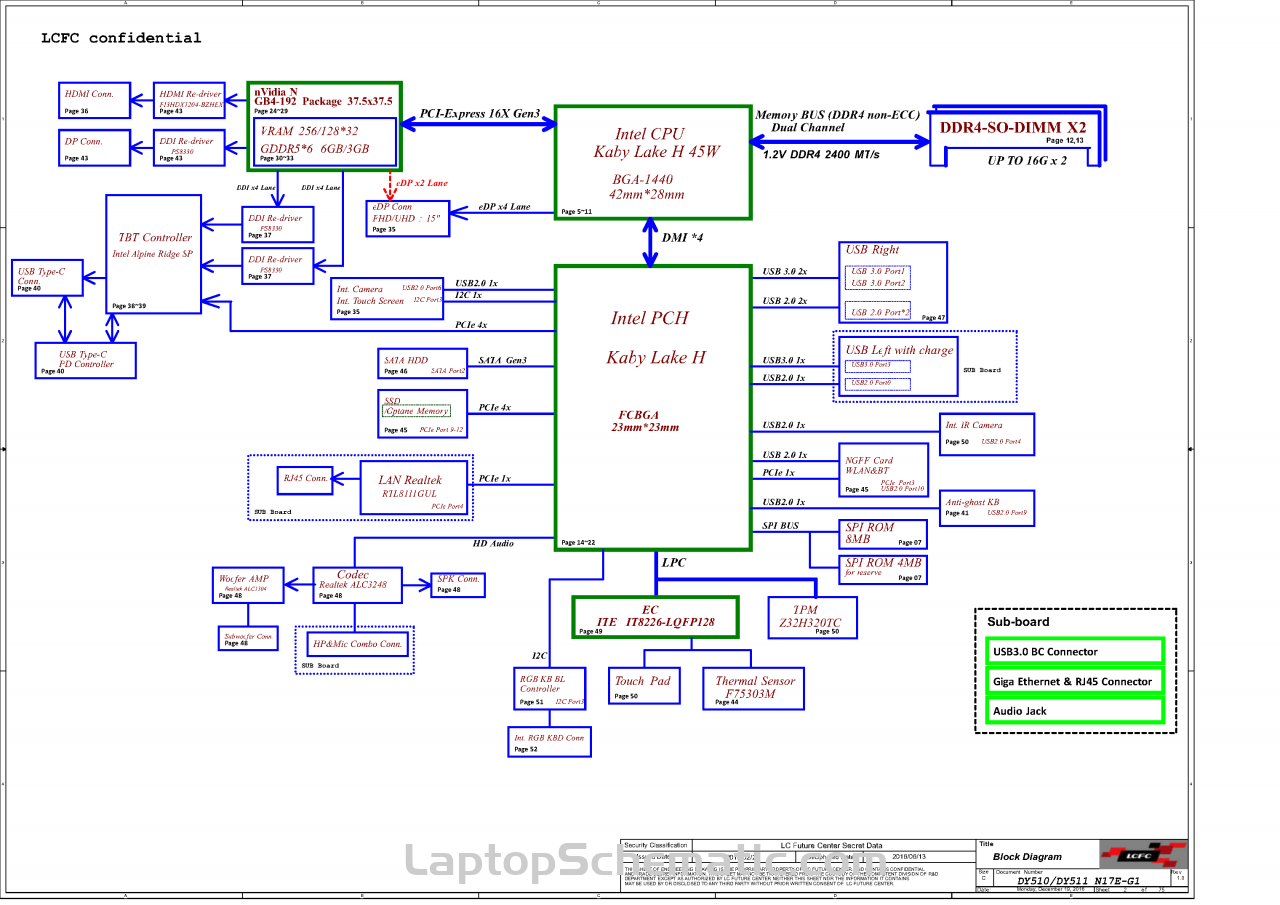

Schematic (*.pdf), Boardview (*.tvw) for Lenovo Legion Y720-15IKB laptop, DY510/DY511 NM-B163 Motherboard.
CPU: Intel Kaby lake H LPDDR4
EC: IT8226-LQFP128
Format: PDF, TVW
Sale Price: 13.5$

Boardview Software

• Open Boardview(.tvw) file with BoardViewer (Download)

Original document, no irrelevant watermark.
