Lenovo Legion Y7000 2019 Schematic & Boardview NM-C371

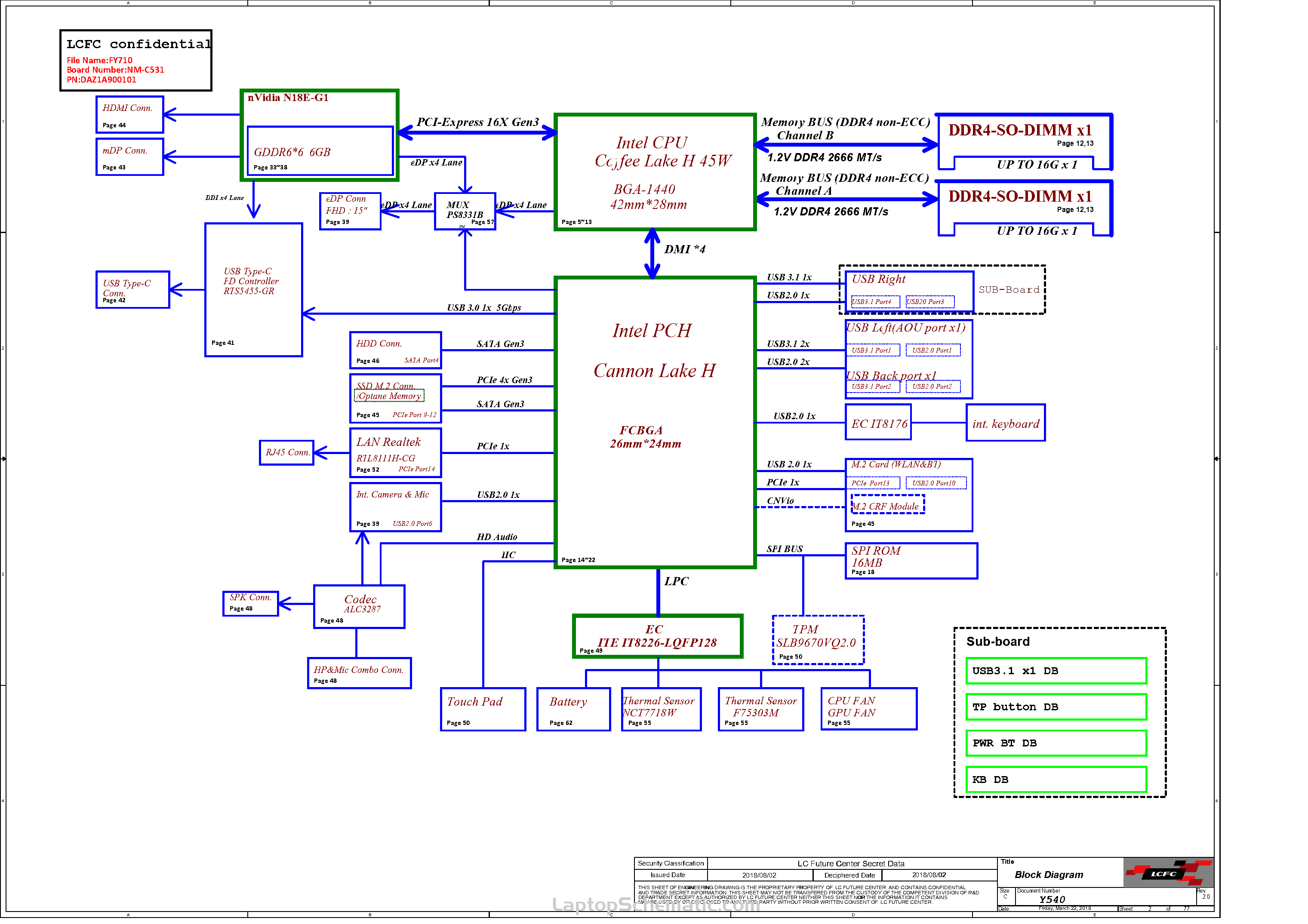

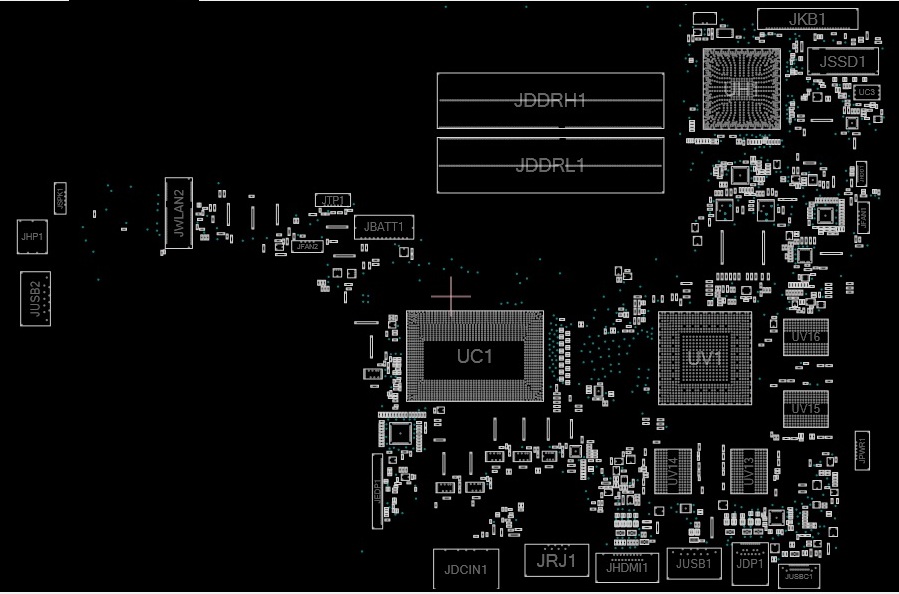

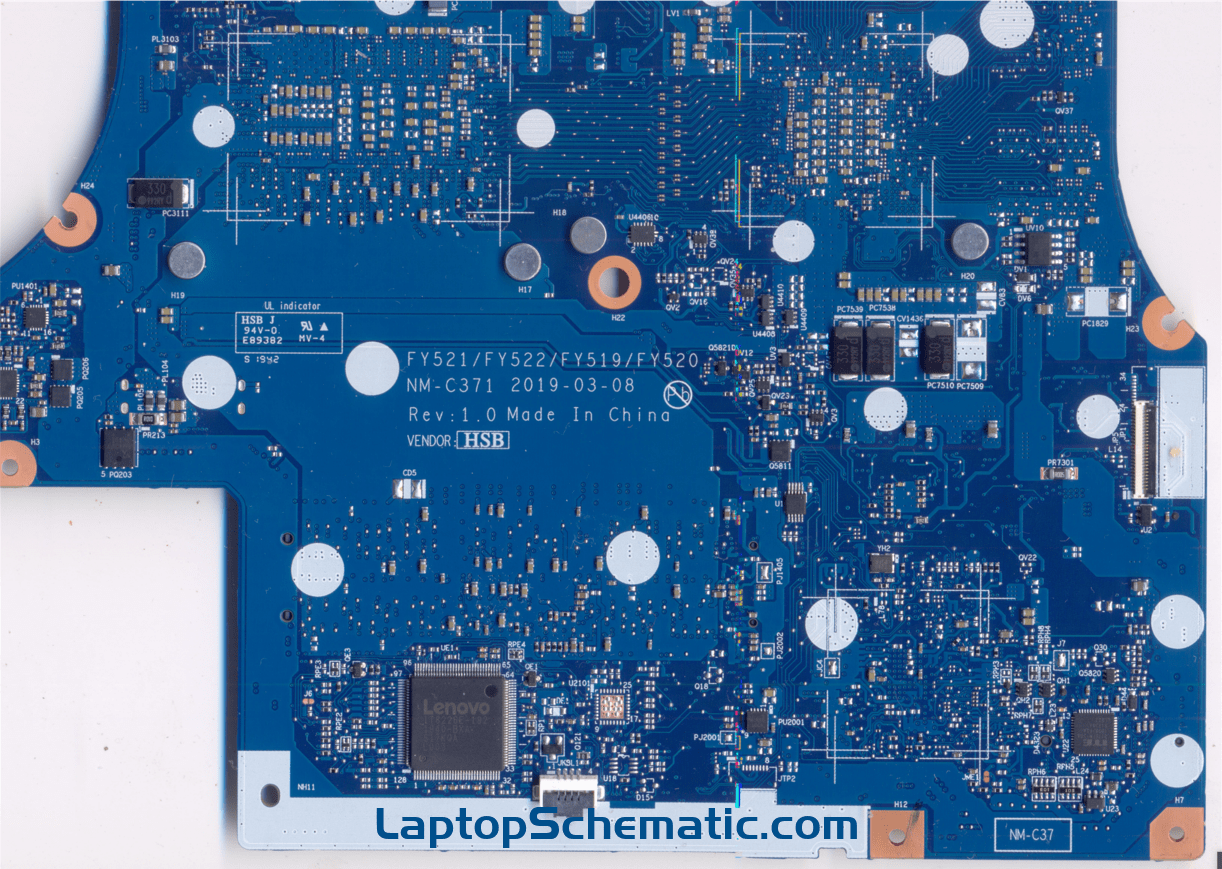

Schematic (*.pdf), Boardview (*.tvw), Motherboard PHOTOS (UHD quality) for Lenovo LegionY7000 2019 laptop, FY521/FY522/FY519/FY520 NM-C371 Motherboard.
CPU/HUB/RAM: Intel CoffeeLake-H / CannonLake-H / DDR4
GPU: DIS (nVidia N18E-G0 / N18E-G1)
EC: ITE IT8226
Format: PDF, TVW
Sale Price: 15.5$

Boardview Software

• Open Boardview(.tvw) file with BoardViewer (Download)

Original document, no irrelevant watermark.
