Sony Vaio VGN-AW, Sony M780 schematic, MBX-194

The schematic diagram for Sony Vaio VGN-AW Series notebook/laptop, M780 (MBX-194) Mainboard.
CPU: Penryn
North Bridge: Cantiga PM + nVIDIA NB9P / NB9M
South Bridge: ICH9-M /ICH9M-Enhanced
OEM: FOXCONN
Project Code & Schematics Subject: M780 EVT Main Board
PCB P/N: FUBAI 1P-0086102-8010
Document Number: M780(MBX-194)
Format: PDF
Total Pages: 79
Sale Price: 12.5$

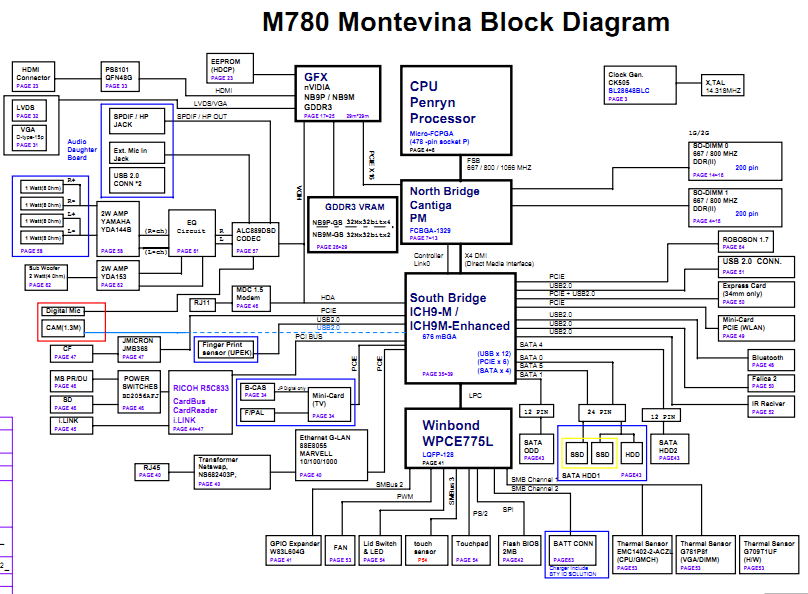

Sony Vaio VGN-AW, Sony M780 Block Diagram:
