Sony Vaio VGN-TZ schematic, MS72 MBX-168

The motherboard schematic for Sony Vaio VGN-TZ MS72-1-01 Main Board, MBX-168.
Project Code & Schematics Subject: MS72 Main Board
PCB P/N:
(FUBAI) 1P-006B100-60SA
(NAN YA) 1P-006B200-60SA
(HANSTAR) 1P-006B500-60SA
CPU: Yonah/Celeron M
North Bridge: Calistoga 945GM/943GML
South Bridge: ICH7-M
OEM: FOXCONN
Document Number: MS72-1-01 MBX-168
Rev: 0.1
Format: PDF
Total Pages: 55
File size: 1.68MB
Sale Price: 10.5$

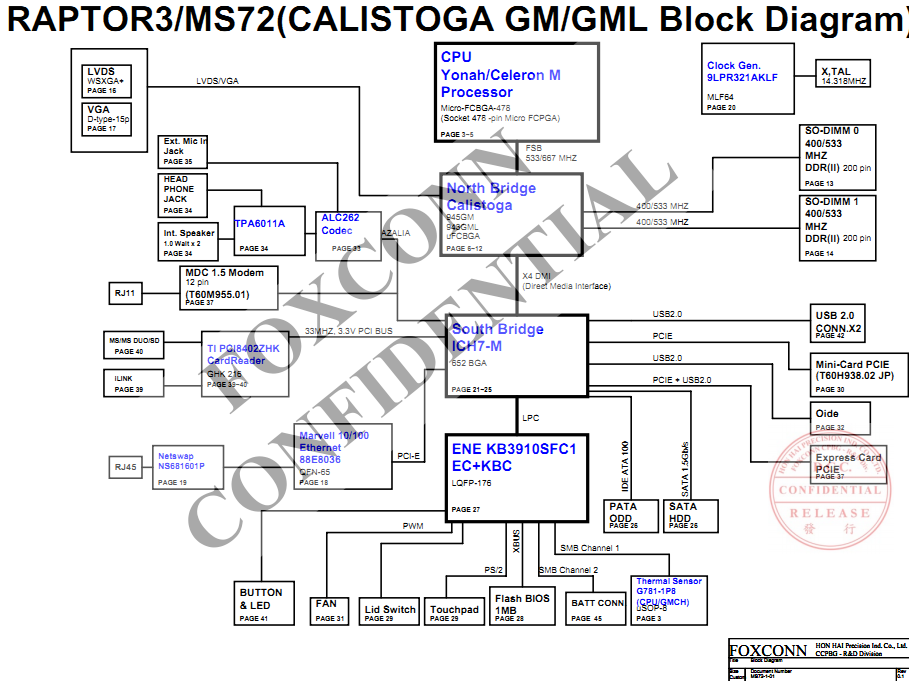

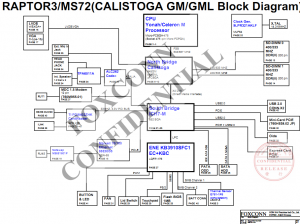

Sony Vaio VGN-TZ (MS72 MBX-168) Block Diagram:

Sony VGN-TZ (MS72 MBX-168) Block Diagram

Sony VGN-TZ (MS72 MBX-168) Block Diagram
