Toshiba Satellite L500/L500D/L550 schematic,NSWAE LA-5331P

The motherboard schematic for Toshiba Satellite L500, Toshiba Satellite L500D, Toshiba Satellite L550D, Toshiba Satellite L555D laptop/notebook, NSWAE/NTWAE LA-5331P Schematics Document.
CPU: AMD S1G2
North Bridge: ATI RX881 + VGA ATI M92
South Bridge: ATI SB710
OEM: Compal Electronics
Model Name: NSWAE NTWAE VGA onboard
File Name: LA-5331P
Title: Schematic, M/B LA-5331P
Document Number: 401716
Rev: C
Format: PDF
Total Pages: 54
File size: 884KB
Sale Price: 10.5$

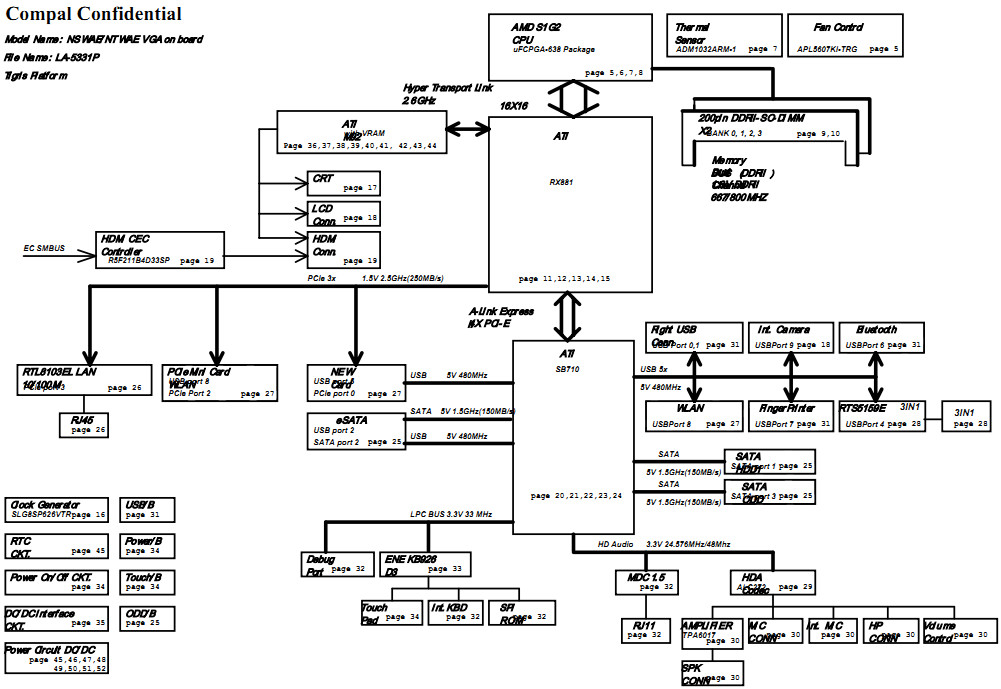

Toshiba Satellite L500 L500D Block Diagram:
