Toshiba Satellite L500/L505/L550/L555 schematic, NSWAA/NTWAA LA-5322P

The motherboard schematic for Toshiba Satellite L500, Toshiba Satellite L505, Toshiba Satellite L550, Toshiba Satellite L555 laptop/notebook, NSWAA/NTWAA Mainboard, Compal LA-5322P.
CPU: Intel Arrandale
Discrete VGA ATI M92XTX,64bit with 256M/512MB/ATI M96 Pro,128bit with 512MB/1GB
Chipset: Intel Ibex Peak
OEM: Compal Electronics, Inc.
File Name : LA-5322P
Model Name : NSWAA/NTWAA
Tiitle: Schematic, LA5322P M/B
Document Number: 401717
Rev: D
Format: PDF
Total Pages: 58
File size: 822KB
Sale Price: 10.5$

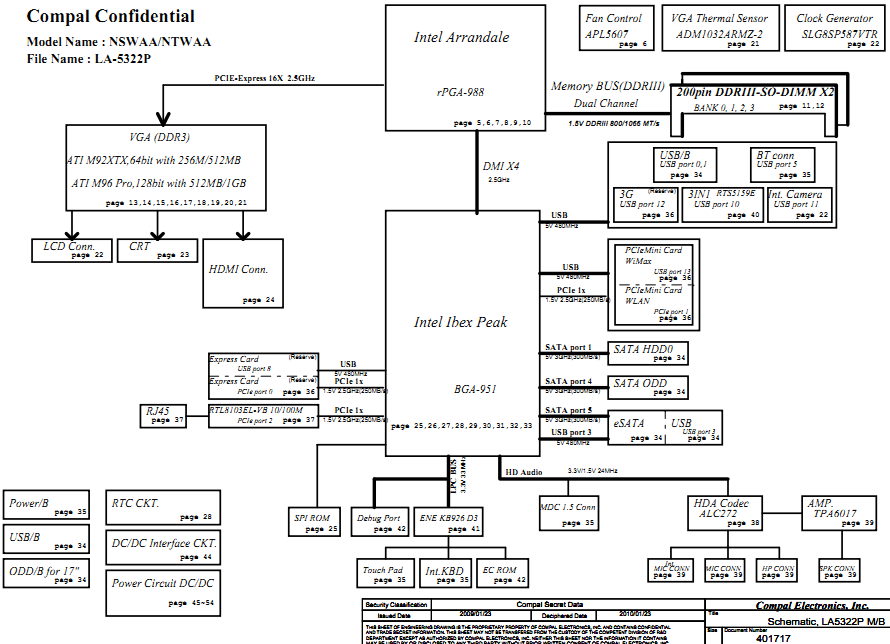

Toshiba Satellite L500/L505/L550/L555 Block Diagram:
