Toshiba Satellite L700 schematic,Discrete,DATE4DMB8D0,Quanta TE4D

The motherboard schematic for Toshiba Satellite L700 (Discrete) laptop/notebook, Quanta TE4D Mainboard.
Discrete VGA N12M-GE/N12P-LP
CPU: Arrandale (UMA+VGA) + DDR3
Chipset: Ibex Peak-M PCH
OEM: Quanta Computer Inc.
Project: TE4D
Rev: 1A
Total Pages: 44
File size: 1.20MB
Sale Price: 10.5$

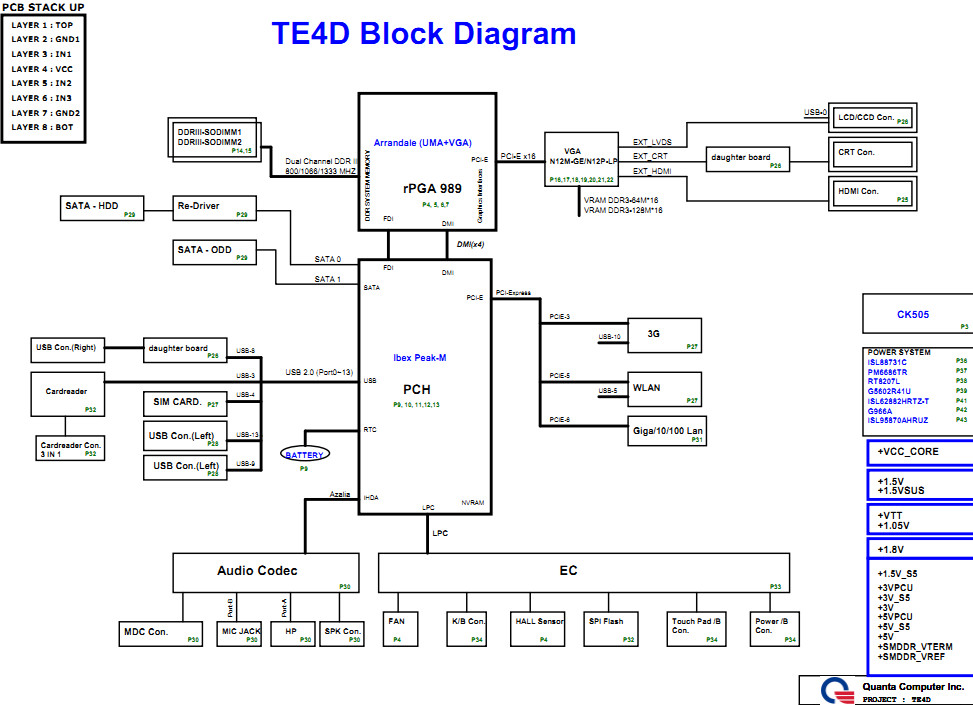

Toshiba Satellite L700 Discrete Block Diagram:
Toshiba Satellite L700 Discrete Block Diagram

Toshiba Satellite L700 Discrete Block Diagram
