Toshiba Satellite L755/L755D/L750D-14R schematic, DA0BLEMB6E0 BLE/BLED

The motherboard schematic for Toshiba Satellite L755, Toshiba Satellite L755D, Toshiba Satellite L750D-14R laptop/notebook, Quanta BLE Mainboard.
CPU: AMD FUSION APU Ontario FT1
Chipset: AMD HUDSON-M1
OEM: Quanta Computer Inc.
PROJECT: BLE/BLED
Rev: 1A
Format: PDF
Total Pages: 41
File size: 1.17MB
Sale Price: 11.5$

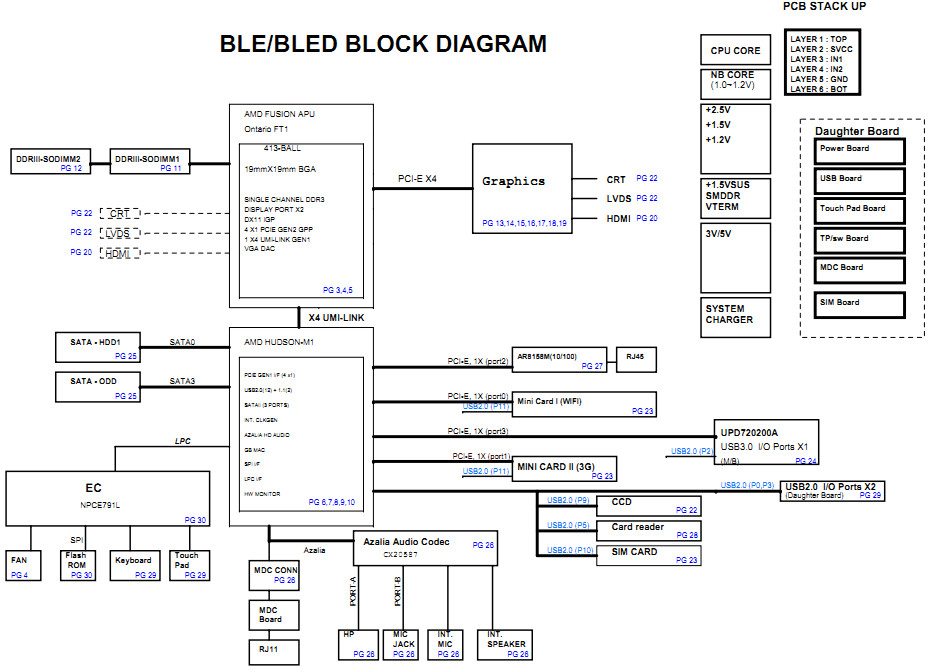

Toshiba Satellite L755 L750D Block Diagram:
Toshiba Satellite L755 L750D Block Diagram

Toshiba Satellite L755 L750D Block Diagram
