HP G4/G6/G7/DV6 Series schematic, Quanta R18D

The motherboard schematic for HP Pavilion G4, HP Pavilion G6, HP Pavilion G7, HP Pavilion DV6 Series laptop/notebook, Quanta R18D, DAR18DMB6D0.
CPU: INTEL Arrandale
Discrete VGA Nvidia N12P-GV
Chipset: INTEL PCH Ibex Peak-m
OEM: Quanta Computer Inc.
Project: R18D
Rev: 1A
Format: PDF
Total Pages: 42
File size: 2.13MB
Sale Price: 10.5$

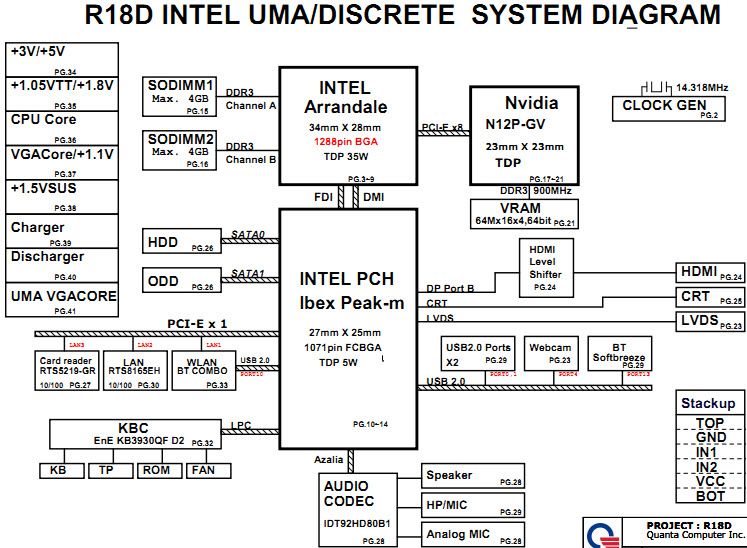

HP G4 G6 G7 DV6 Block Diagram(R18D):
