HP Pavilion G4/G6/G7 schematic, DA0R33MB6D0, Quanta R33

The motherboard schematic for HP Pavilion G4, HP Pavilion G6/G6-2000/G6-2004er, HP Pavilion G7, HP Pavilion G7-2000 laptop/notebook, Quanta R33 Mainboard.
CPU: INTEL IVY
VGA ATI Thames XT
Chipset: INTEL PCH Panther Point
OEM: Quanta Computer Inc
Project: R33
Rev: 1A
Format: PDF
Total Pages: 43
File size: 1.43MB
Sale Price: 11.5$

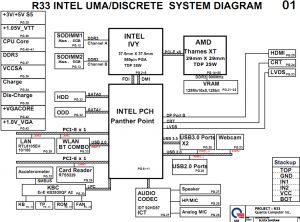

R33 INTEL UMA/DISCRETE SYSTEM DIAGRAM:
