HP Pavilion G4/G7/G7-2000 schematic & boardview, DA0R53MB6E0, Quanta R53

The motherboard schematic & boardview(.bdv) for HP Pavilion G4, HP Pavilion G7, HP Pavilion G7-2000 laptop/notebook, Quanta R53 Mainboard, DA0R53MB6E0, DA0R53MB6E1.
CPU: AMD Trinity APU
VGA ATI THAMES XT
Chipset: AMD FCH Hudson M2/M3
OEM: Quanta Computer Inc
Project: R53
Rev: 1A
Format: PDF
Total Pages: 44
File size: 1.45MB
Sale Price: 12.5$ (include boardview)

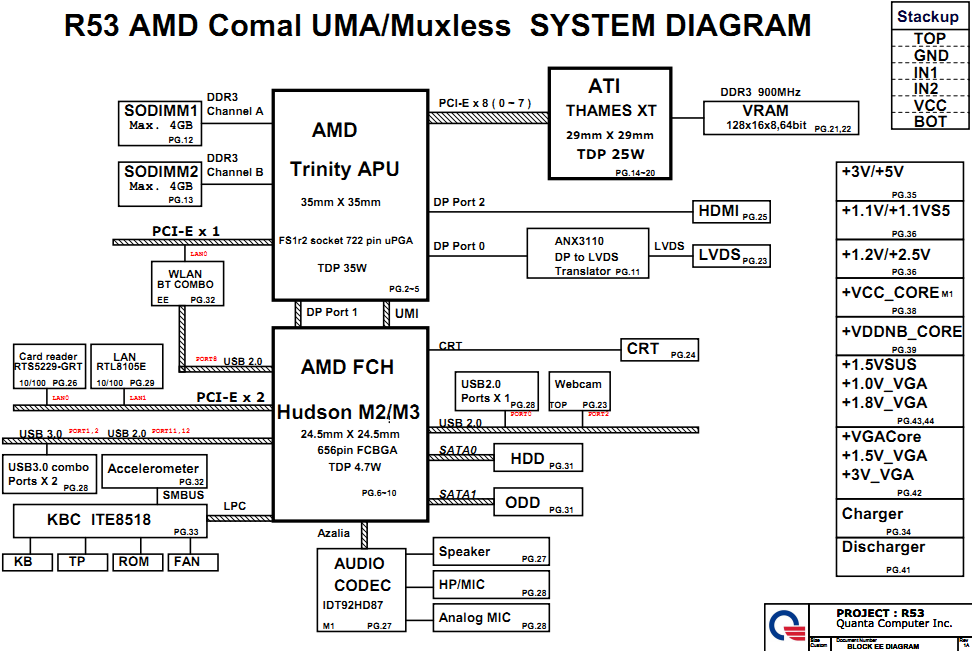

HP Pavilion G4 G7 Block Diagram:

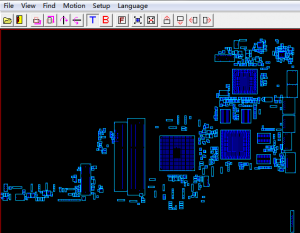

HP Pavilion G4 G7(R53) Boardview:
