Lenovo IdeaPad 310-15ISK 510-15ISK (DIS GPU) Schematic & Boardview NM-A751 CG411 CG511

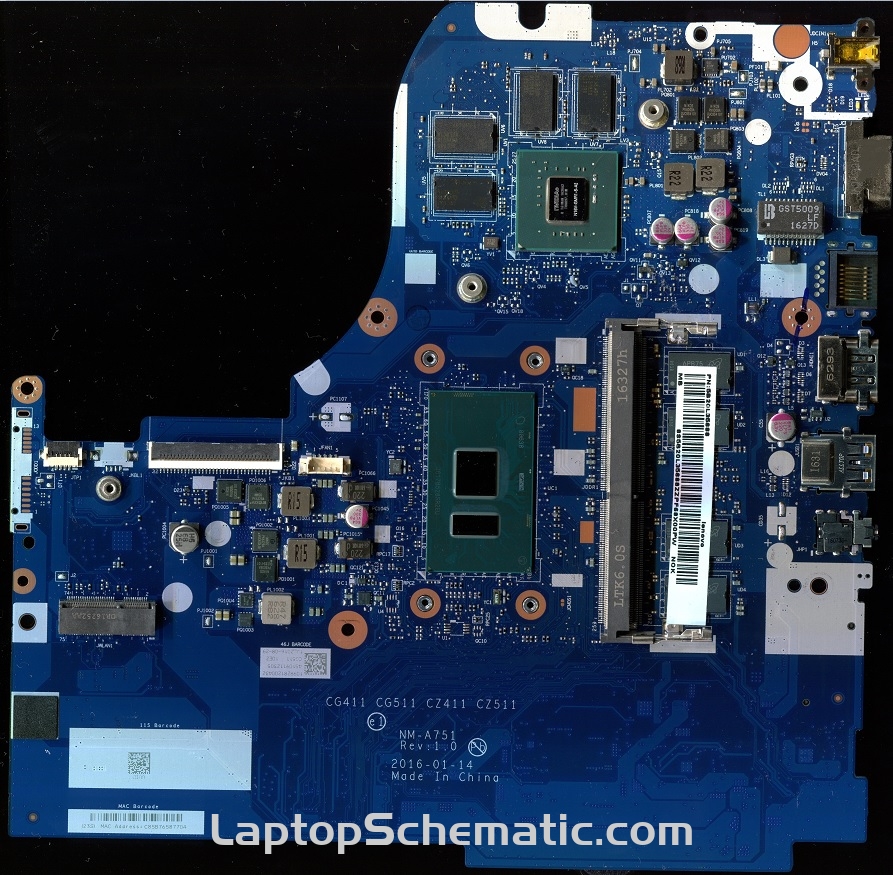

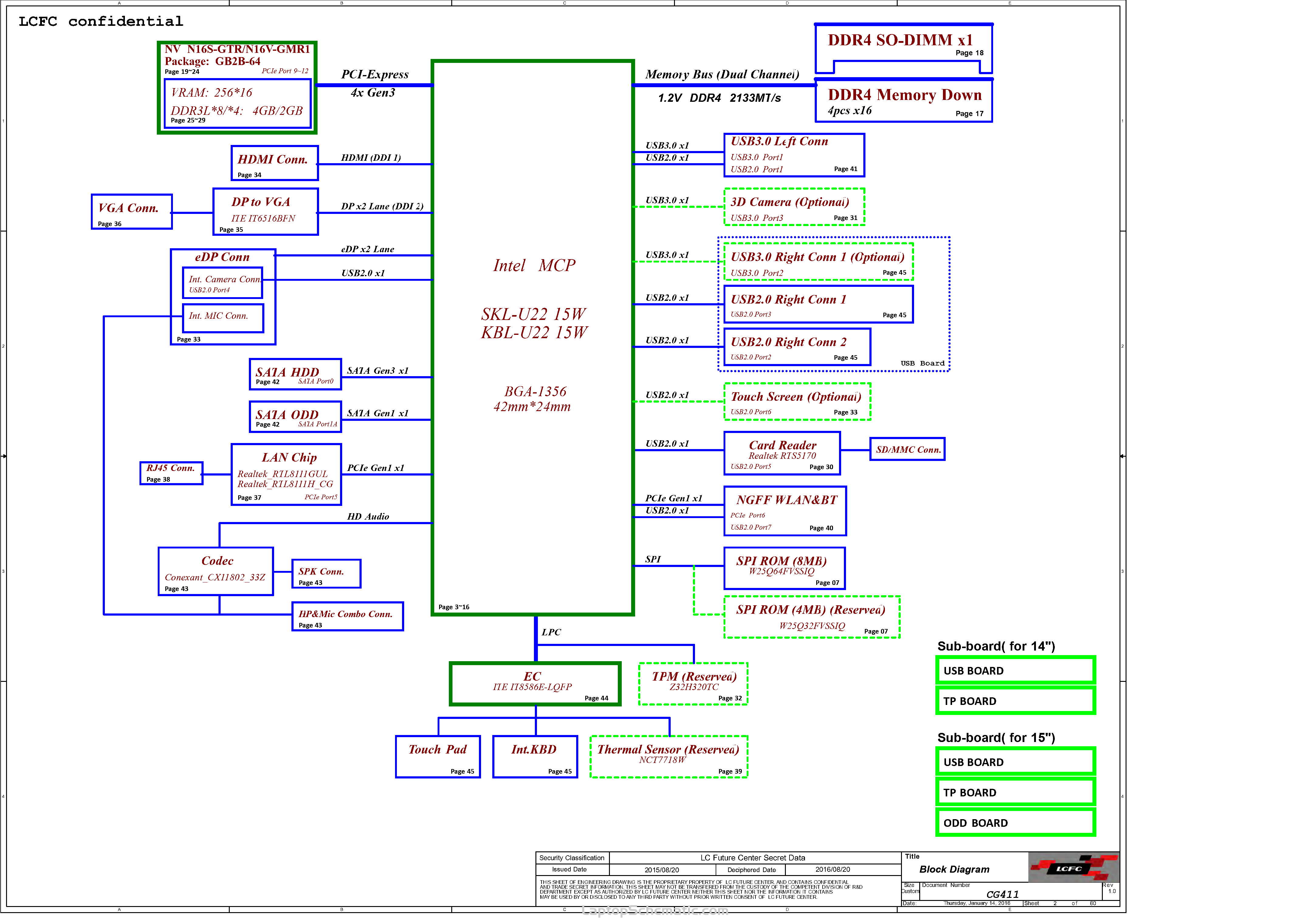

Schematic (*.pdf), Boardview (*.tvw) for Lenovo IdeaPad 310-15ISK (DIS GPU) , Lenovo IdeaPad 510-15ISK (DIS GPU) laptop, NM-A751 Motherboard.
Intel MCP Sky Lake / Kaby Lake
GPU: Nvidia N16S-GTR/N16V-GMR1 (DIS)
EC: ITE IT8586E
Format：PDF (Searchable) / Boardview (*.tvw)
Sale Price: 13.5$

Original document, no irrelevant watermark.

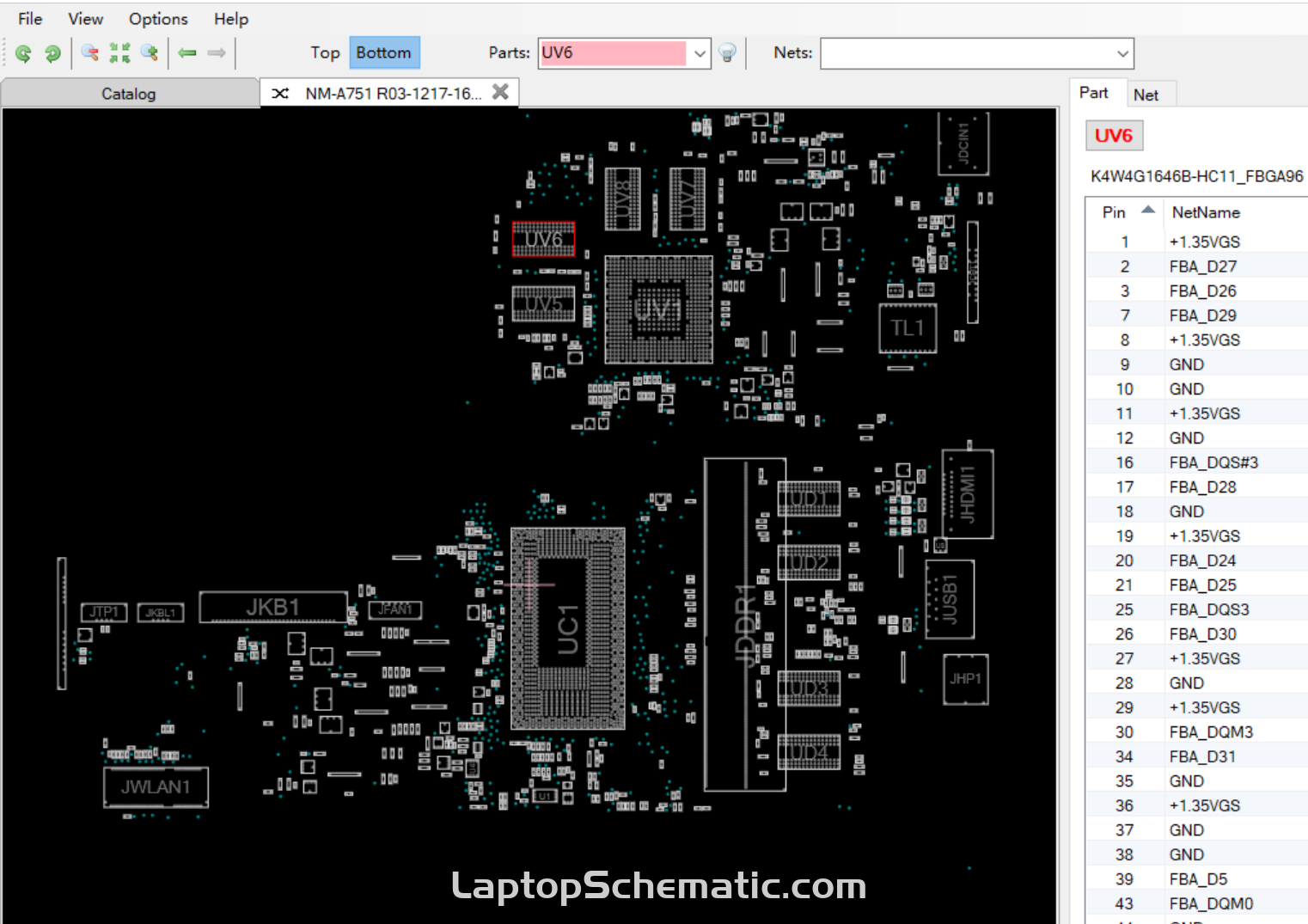

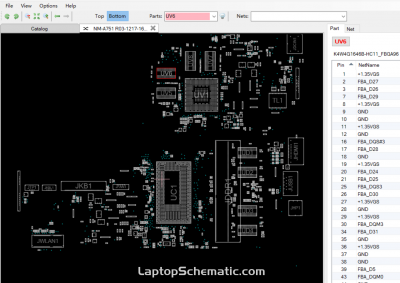

Boardview Software

• Open Boardview(.tvw) file with BoardViewer (Download)
