Lenovo IdeaPad Yoga 2 Pro Schematic & Boardview, NM-A074 VIUU3

The motherboard schematic and Boardview (.cad) for Lenovo IdeaPad Yoga 2 Pro 13.3 laptop/notebook, NM-A074 VIUU3 Motherboard, Kona SVT-NCS Schematic.
CPU: Intel Haswell
Document Number: Kona
Format: PDF & CAD
Searchable PDF file, No Watermark
Sale Price: 12.5$ (include Boardview)

File list:
│ Lenovo Yoga 2 Pro 13.3 NM-A074 VIUU3 Rev1.0 schematic.pdf
└─Boardview
│ sensor-SVT-ITE.cad
│ kona-rio-svt-ncs.cad
│ Kona_Svt-ITE.cad
│ KONA_ti_sensor_svt.cad
│ kona-dmic-sVt-ncs.cad
│ kona-lio-svt-ncs.cad
│ kona-pwr-btn-svt-ncs.cad
└─BoardViewer 2.0.1.8

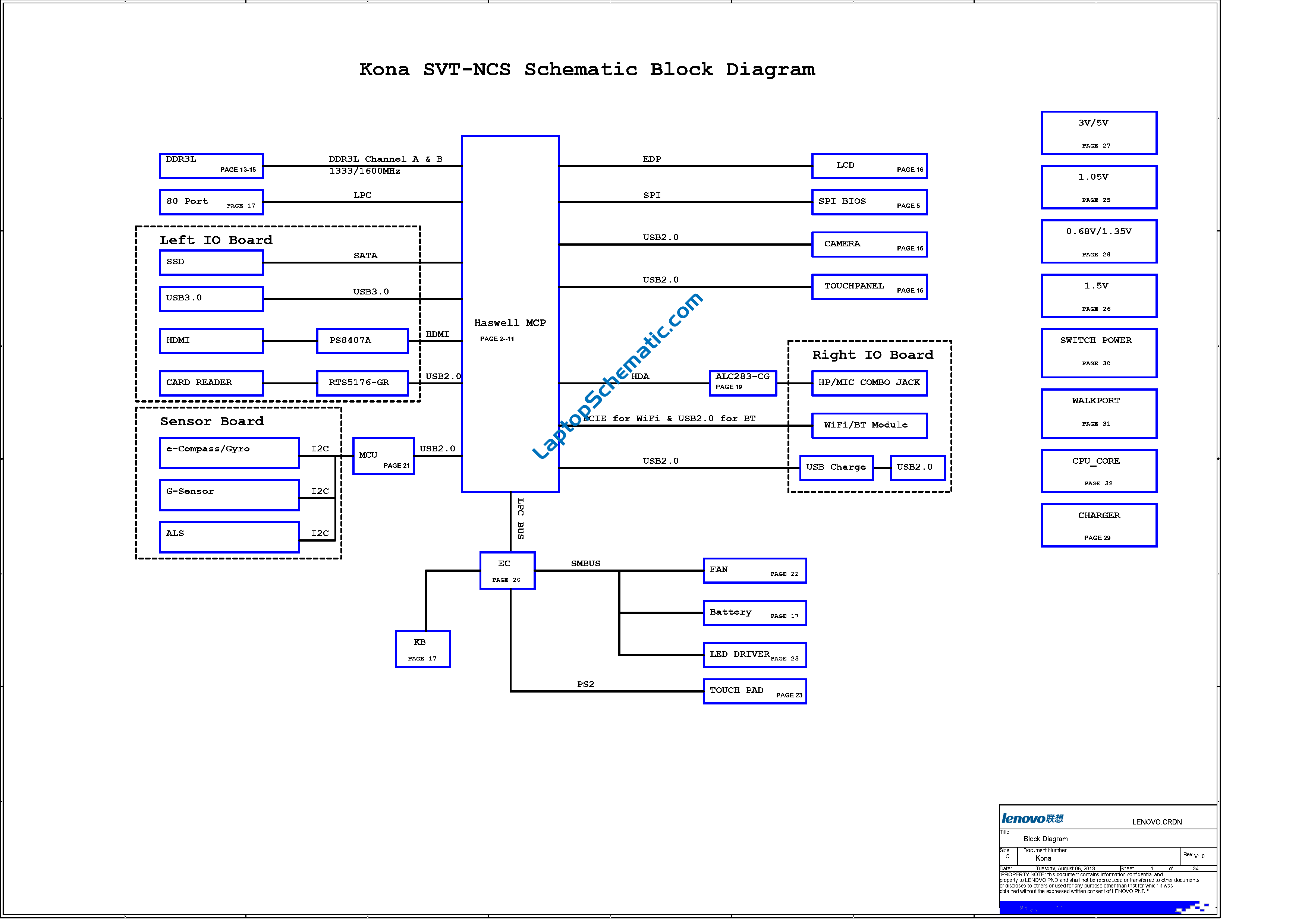

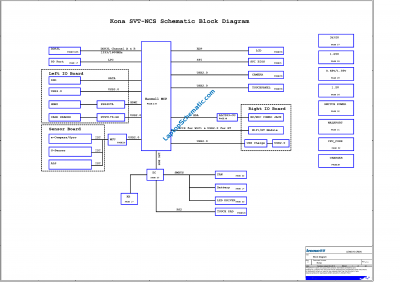

Lenovo Yoga 2 Pro 13.3 Block Diagram:

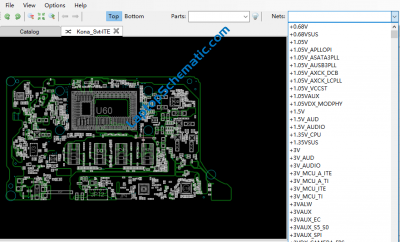

Lenovo Yoga 2 Pro 13.3 Boardview:
