Lenovo Yoga 700-11ISK Schematic & Boardview BIZY1 LA-D131P

Schematic (*.pdf), Boardview (*.bdv) for Lenovo Yoga 700-11ISK laptop, BIZY1 LA-D131P Motherboard.
Intel Skylake-Y + LPDDR3
GPU: UMA
EC: NPCE388
Model Name: BIZY1
File Name: LA-D131PR10
Language: English

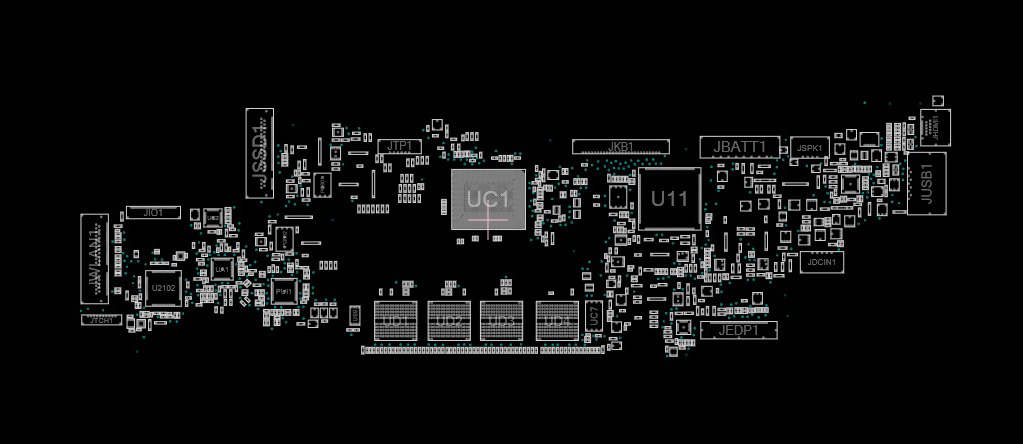

File type: PDF (Searchable), BDV (Boardview)
Sale Price: 12.5$

Original document, no irrelevant watermark.
