Lenovo Thinkpad W540 W541 Schematic & Boardview LKM-1 WS 12291-2

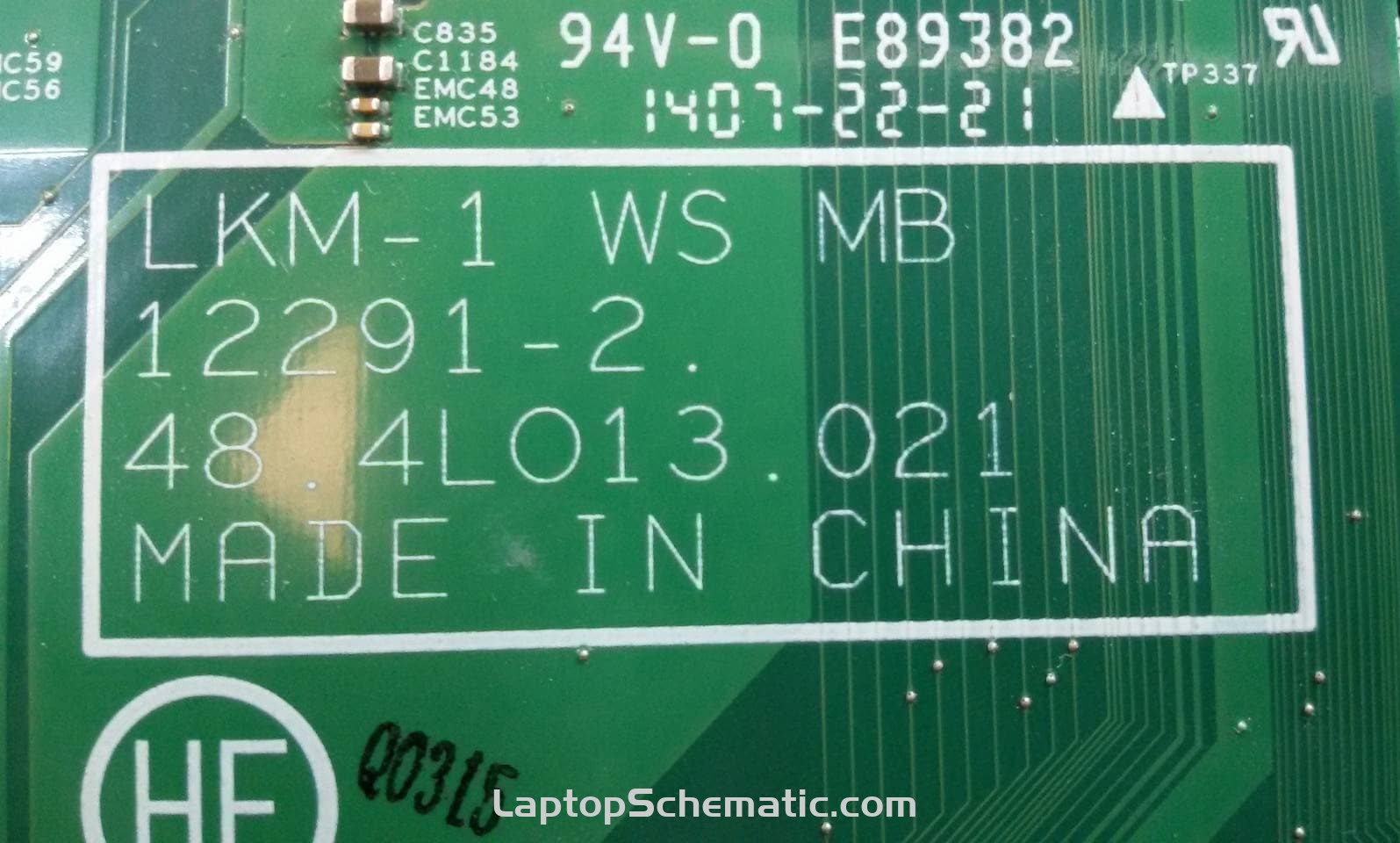

Schematic (*.pdf), Boardview (*.bv) for Lenovo Thinkpad W540, Lenovo Thinkpad W541 laptop, LKM-1 WS 12291-2 Motherboard.
Intel Haswell / Lynx Point with DDR3L
GPU: UMA or DIS (N14M-GS)
EC: MEC1633L
Format：PDF (Searchable, No watermark of website), BV
Sale Price: 12.5$

Original document, no irrelevant watermark.

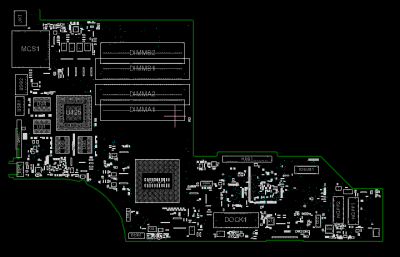

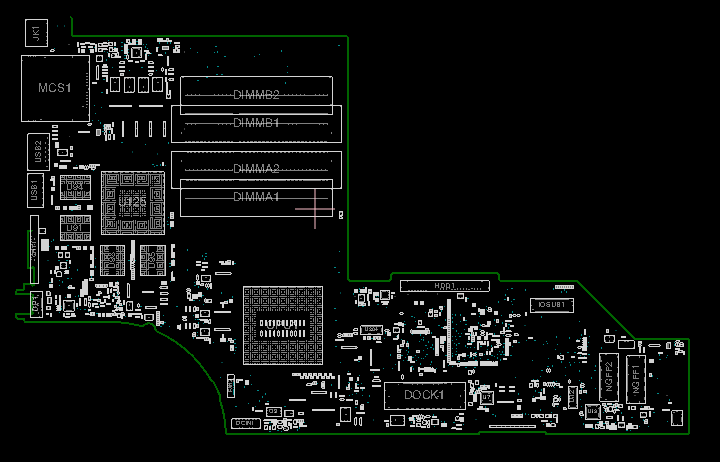

Boardview Software

• • Open Boardview(*.bv) file with BoardViewer (Download)
