Lenovo Yoga 710-14ISK 710-15ISK Schematic diagram, Compal LA-D471P

Lenovo Schematics

The motherboard schematic diagram for Lenovo Yoga 710-14ISK, Lenovo Yoga 710-15ISK laptop/notebook, YOGA Gloria 14″ & 15″ DIS M/B Schematics Document, Intel KabyLake U Processor with DDR4, N16S-GTR-S(940) (23x23mm), Compal LA-D471P motherboard.
Part Number: DAZ1JH00100
PCB BIUY2 LA-D471P LS-D471P/D472/D473 02
Document Number: LA-D471P
Format: PDF
Searchable PDF file, No watermark of website
Also included: Power On Sequence
Total Pages: 53
Sale Price: 12.5$

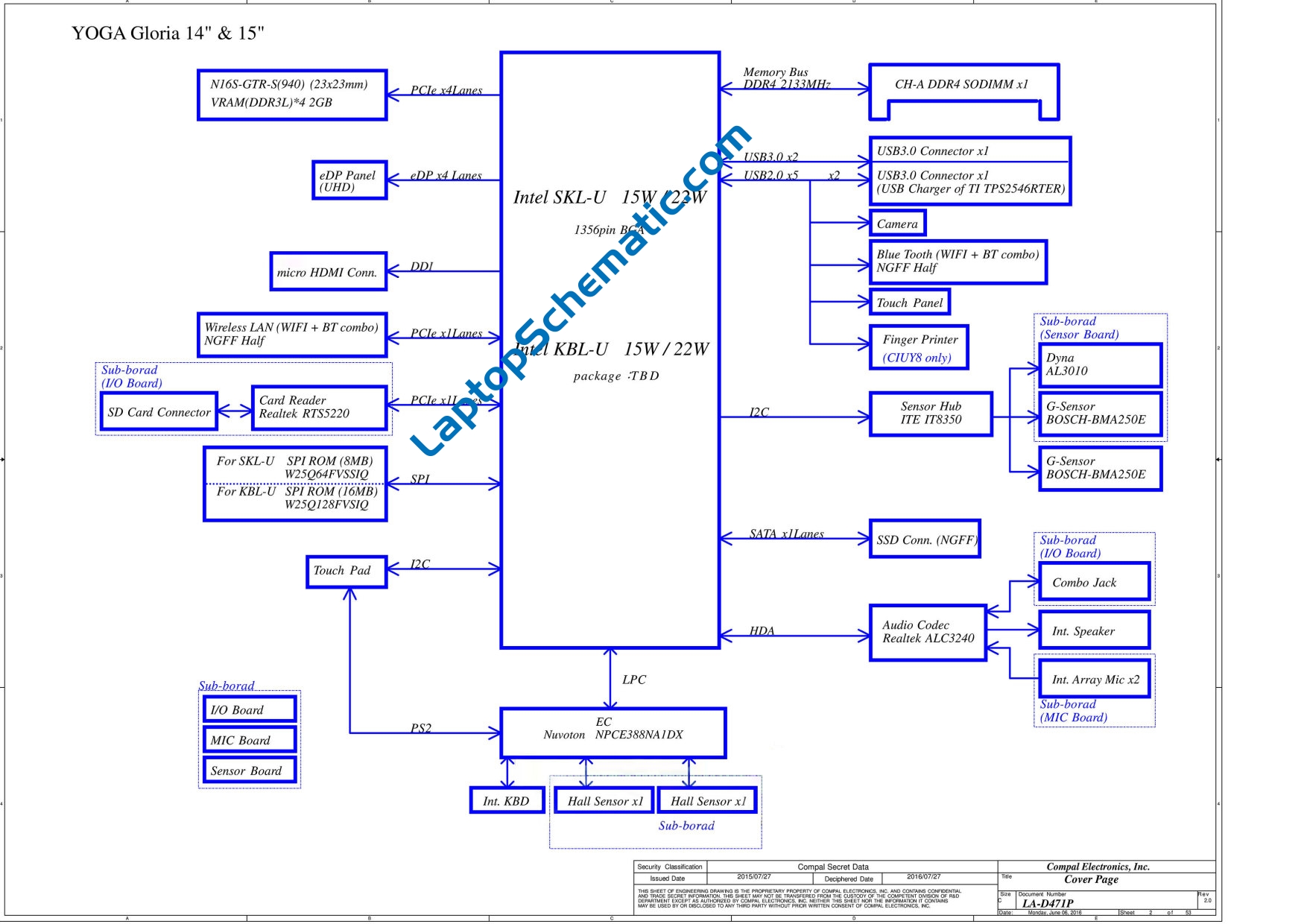

Lenovo Yoga 710-14ISK 710-15ISK LA-D471P Block Diagram:
