Lenovo ThinkPad S230U schematic, Compal LA-8671P

The motherboard schematic for Lenovo ThinkPad S230U laptop/notebook, Compal LA-8671P TN-Note Schematic Document. Intel Ivy Bridge + Intel Panther Point, DDR3 Chip x8.
CPU: Intel Ivy Bridge
Chipset: Intel Panther Point
OEM: Compal
Document Number: LA-8671P_SDV
Format: PDF
Total Pages: 50
Sale Price: 10.5$

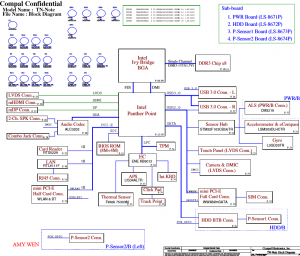

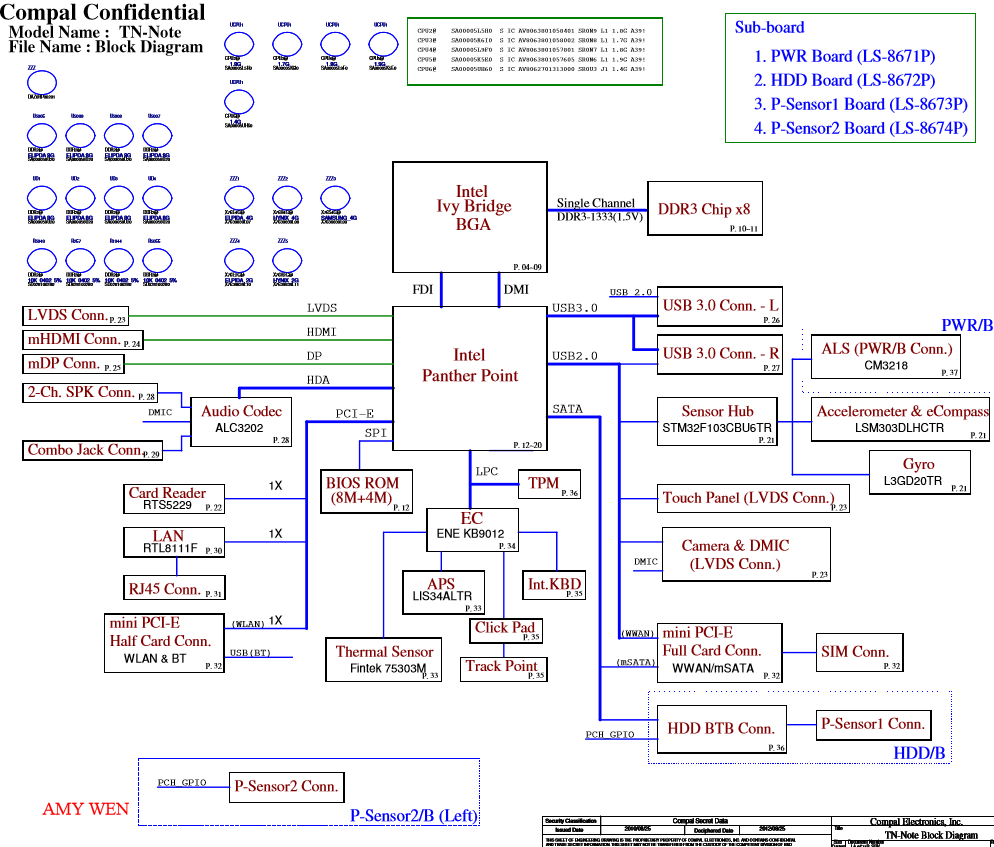

ThinkPad S230U Compal LA-8671P Block Diagram:
